Product Model

pun-12x2-si

Manufacturer

Festo

Key Features

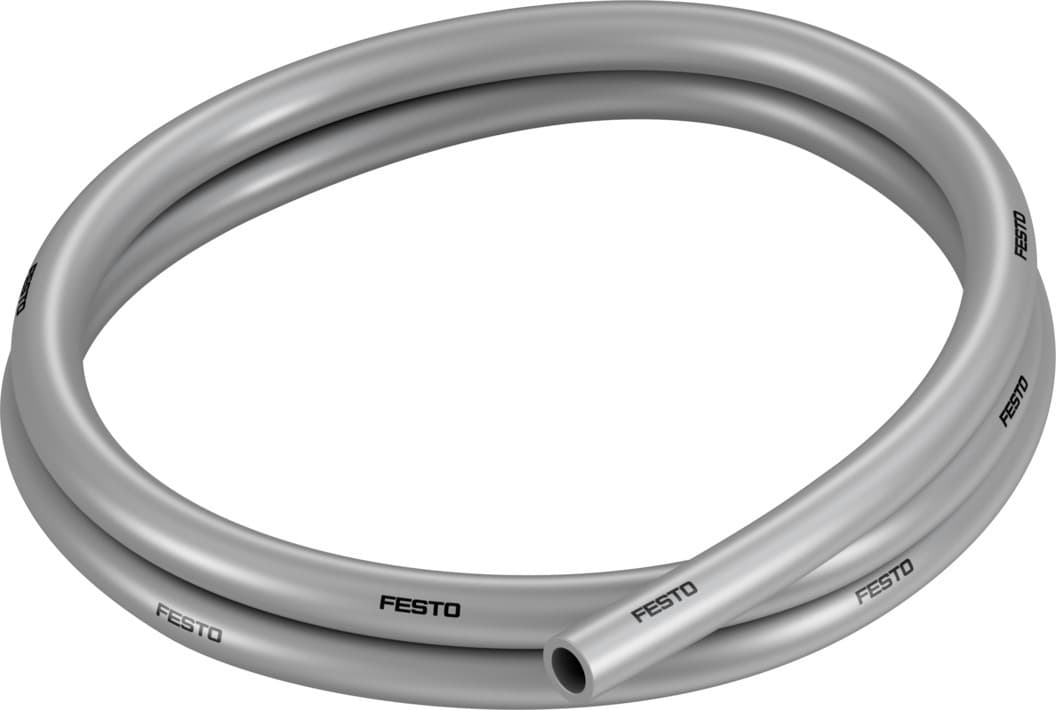

1The Festo PUN-12X2-SI plastic tubing features an outside diameter of 12 mm and an inside diameter of 8 mm, making it ideal for various pneumatic applications.
2With a flow-relevant bending radius of 62 mm and a minimum bending radius of 33 mm, this tubing ensures efficient and safe installation in your system.
3The PUN-12X2-SI is suitable for use with compressed air and operates within a temperature range of -35°C to 60°C, ensuring reliable performance in diverse environments.
4This TPE-U (PU) based tubing is RoHS-compliant and meets the standards of the German Technical Control Board (TÜV), ensuring compliance with safety regulations.
5The PUN-12X2-SI is designed for push-in connectors and is available in silver color with a Shore hardness of D 52 +/-3, providing a durable and long-lasting solution for your pneumatic needs.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Outside diameter	12mm	Bending radius relevant for flow rate	62mm
Inside diameter	8mm	Min. bending radius	33mm
Application note	TPE-U Ester based The plastic tubing may only be laid in contact with cables if their sheathing is free of phosphoric acid esters. Otherwise the plastic tubing may get damaged.	Tubing characteristics	Suitable for energy chains
Operating pressure for entire temperature range	-13.775psi 101.5psi	Temperature-dependent operating pressure	-13.775psi 145psi
Certification	German Technical Control Board (TüV)	Certificate issuing authority	B 013277 0506 00
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Material fire test	UL94 HB
LABS (PWIS) conformity	VDMA24364-B2-L	Ambient temperature	-35°C 60°C
Product weight by length	0.0767kg/m	Pneumatic connection	For plug connection outside diameter 12 mm
Color	Silver	Shore hardness	D 52 +/-3
Note on materials	RoHS-compliant	Material of pneumatic tubing	TPE-U(PU)
Manufacturer ID	152589

Specifications may be subject to change without notice
