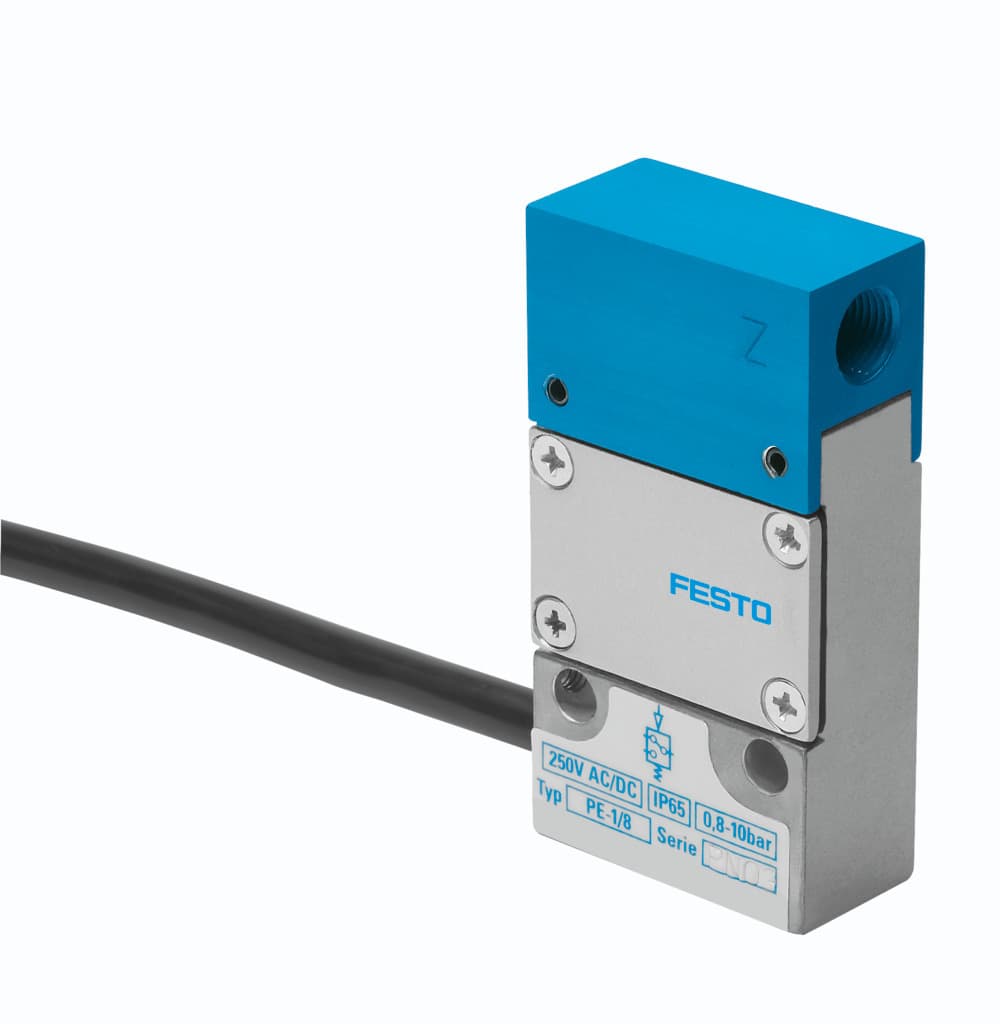

Product Model
pe-1/8
Key Features
- 1The Festo PE-1/8 pressure converter offers precise relative pressure measurement, ensuring accurate readings in pneumatic/electric applications.
- 2Conforms to the standard EN 60947-5-1 and CE marked for compliance with EU and UK low voltage directives, ensuring safety and reliability.
- 3Operates within a pressure range of 0 to 8 bar, making it suitable for various industrial applications.
- 4Built with a die-cast aluminum housing reinforced with PA and steel, providing robustness and longevity.
- 5Available with a G1/8 pneumatic connection and can be mounted on a 2N mounting frame or through-hole, offering flexibility in installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 60947-5-1 | Symbol | 00991470 |
| Certification | CCC | CE marking (see declaration of conformity) | As per EU low voltage directive |
| UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Measured variable | Relative pressure |
| Method of measurement | Pneumatic/electric pressure transducer | Operating pressure | 0.8bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible |
| Ambient temperature | -10°C 60°C | Switching output | Contact-based |
| Switching function | Threshold value with fixed hysteresis | Switching element function | Changeover switch |
| Max. switch-on point | 0.8bar | Min. switch-off point | 0.2bar |
| Max. switching output voltage AC | 250V | Max. switching output voltage DC | 250V |
| Utilization category for inductive load | AC-14 DC-13 | Utilization category for ohmic load | AC-12 DC-12 |
| Electrical connection | 4-wire Cable | Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end | Cable length | 1m |
| Material of cable sheath | PVC | Type of mounting | With through-hole |
| Mounting position | Any | Pneumatic connection | G1/8 |
| Product weight | 225g | Housing material | Aluminum, anodized Die-cast zinc |
| Diaphragm material | Chloroprene rubber | Setting options | Permanently set |
| Degree of protection | IP65 | Insulation voltage | 2000V |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Contamination level | 3 |
| Manufacturer ID | 3344 |
Specifications may be subject to change without notice
