Product Model
nebv-z3wa2l-r-e-10-n-le2-s1
Key Features

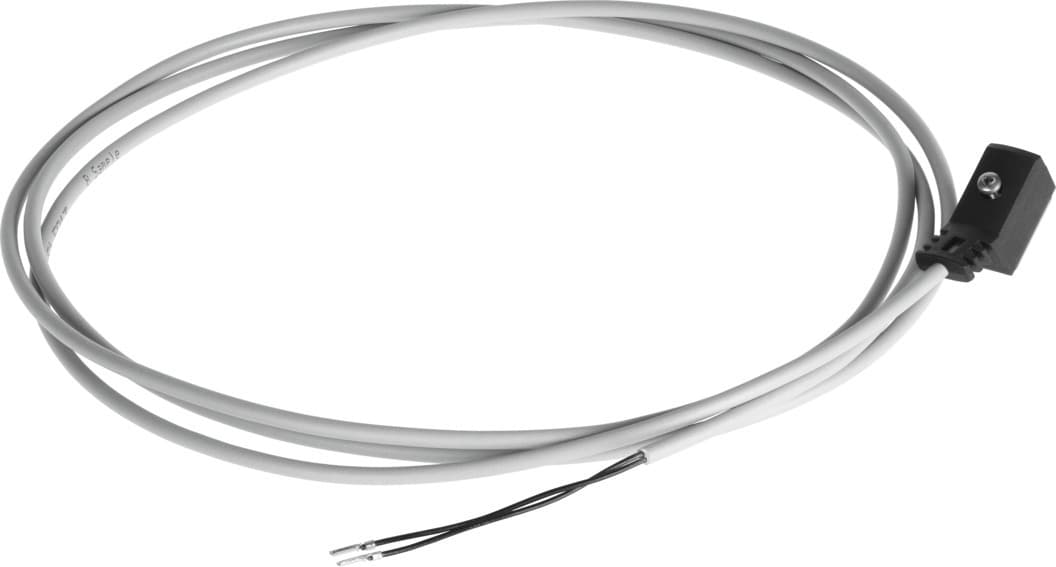

- 1The NEBV-Z3WA2L-R-E-10-N-LE2-S1 features an angled 45° socket for easy connection.
- 2Designed to work seamlessly with energy chains, ensuring reliable operation.
- 3Equipped with an integrated protective circuit to reduce holding current.
- 4Offers high protection against dust and water (IP65), suitable for harsh environments.
- 5Includes a yellow LED for visual signal status indication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Explosion prevention and protection | Zone 2 (ATEX) Zone 2 (UKEX) | ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex ec IIC Gc X | Explosion protection certification outside the EU | EPL Gc (GB) |
| Signal status display | LED yellow | Additional functions | Holding current reduction Protective circuit |
| Cable designation | Without label holder | Contact durability | 50 |
| Product weight | 170g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | Connection diagram ZC, self-tapping screw |
| Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | On air solenoid valve with self-tapping screw | Electrical connection for input 1, connection pattern | 00995625 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 20.4V 26.4V |
| Nominal operating voltage DC | 24V | Surge resistance | 2.4kV |
| Reverse polarity protection | Bipolar | Protective earth connection | Not available |
| Cable length | 10m | Cable characteristic | Suitable for energy chains |
| Connector cable test conditions | Test conditions on request | Bending radius, flexible cable installation | 29mm |
| Cable diameter | 2.9mm | Cable diameter tolerance | ± 0.1 mm |
| Cable design | 2 x 0.14 mm2 | Nominal conductor cross section | 0.14mm2 |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -10°C 50°C | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | Material of cable sheath | TPE-U(PUR) |
| Color cable sheath | Gray | Housing material | TPE-U(PU) |
| Housing colour | Black | Material of screws | Steel |
| Material of pin contacts | Copper alloy, tin-plated | Insulating sheath material | PP |
| Manufacturer ID | 8047675 |
