Product Model

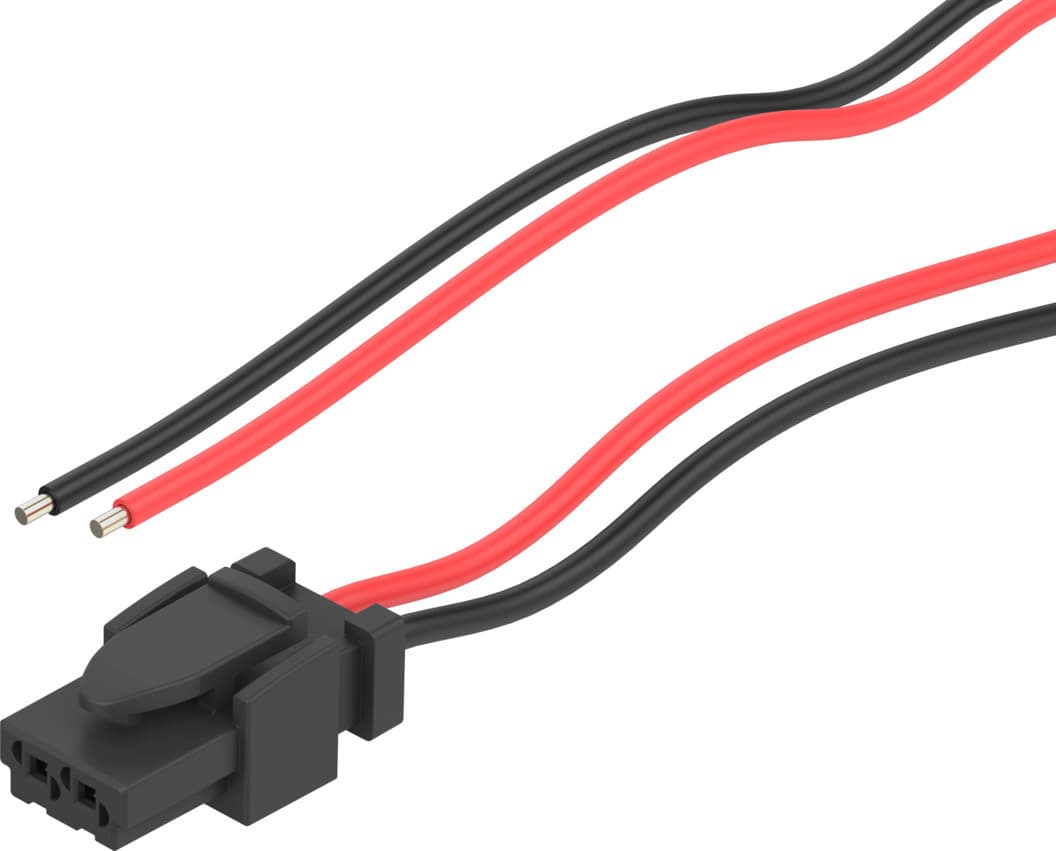

nebv-hsg2-kn-5-n-le2
Key Features
- 1Angular electrical connection for secure field device integration.
- 2Compatible with any mounting position, ensuring flexibility in installation.
- 3Supports up to 3A at 40°C, ideal for demanding applications.
- 4Made from POM housing and copper alloy electrical contacts for long-lasting performance.
- 5Meets EU RoHS Directive and CE marking standards for safety and environmental compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Mounting position | Any |
| Product weight | 31g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram S |
| Electrical connection 1, number of pins/wires | 2 | Electrical connection 1, occupied pins/wires | 2 |
| Electrical connection 1, type of mounting | Snap-locking | Electrical connection for input 1, connection pattern | 00995631 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | 2x single wires |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 2 |
| Electrical connection 2, occupied pins/wires | 2 | DC operating voltage range | 0V 60V |
| Current rating at 40° C | 3A | Cable length | 5m |
| Cable characteristic | Standard | Cable diameter | 1.3mm |
| Cable design | 2 x 0.14 mm2 | Nominal conductor cross section | 0.14mm2 |
| Wire ends | Cut off bluntly | Degree of protection | IP40 |
| Note on degree of protection | In mounted state | Ambient temperature | -5°C 60°C |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Housing material | POM | Housing colour | Black |
| Material of pin contacts | Copper alloy Tin-plated | Insulating sheath material | PVC |
| Manufacturer ID | 566665 |
Specifications may be subject to change without notice
