Product Model
nebu-m12w8-k-5-n-le8
Key Features

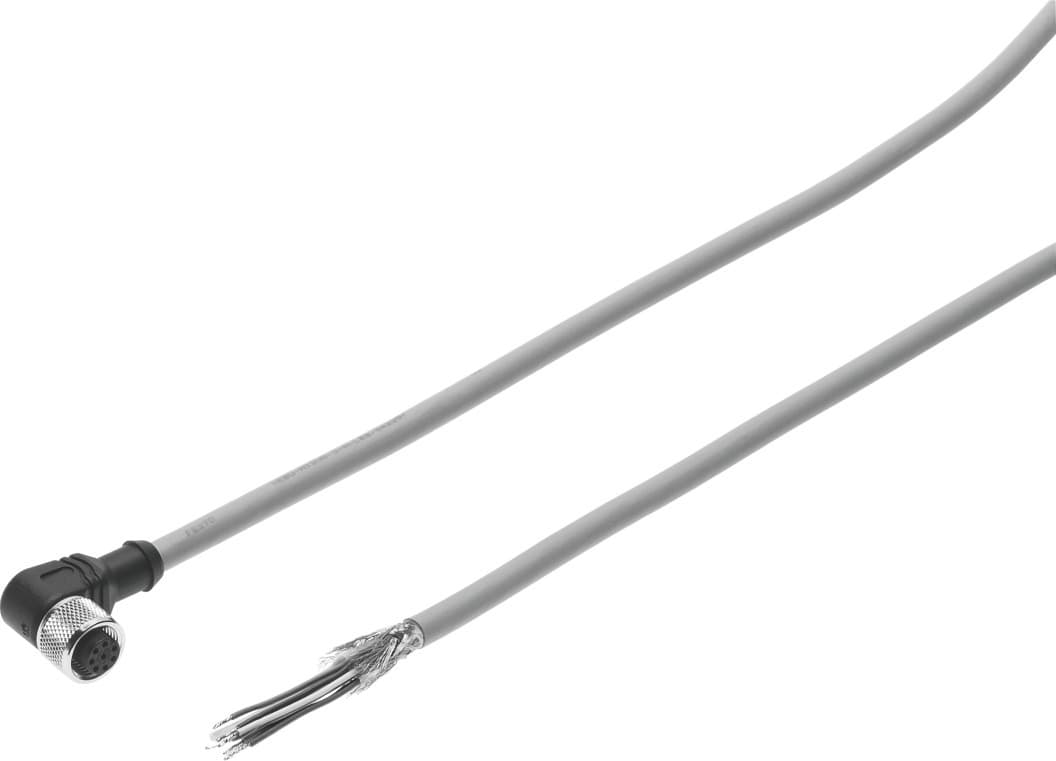

- 1The Festo NEBU-M12W8-K-5-N-LE8 is a 5-meter cable with an M12 angled plug socket, perfect for connecting field device screens in industrial settings.
- 2This cable meets the EN 61076-2-101 standard, ensuring high-quality and reliable performance in various industrial applications.
- 3With an operating voltage range of 0 to 30V DC and AC, it is suitable for a wide range of electrical connections, including control screens.
- 4The cable features an 8-pin open wire design and is shielded with a cable diameter of 6.3mm, providing excellent protection against electrical interference.
- 5The Festo NEBU-M12W8-K-5-N-LE8 is made from RoHS compliant materials and has an IP67 protection category, ensuring durability and resistance to environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Conforms to standard | EN 61076-2-101 | Cable designation | Without label holder |
| Product weight | 292g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 8 | Electrical connection 1, occupied pins/wires | 8 |
| Electrical connection 1, type of mounting | Compatible with rotatable/non-rotatable screw lock | Electrical connection for input 1, connection pattern | 00992265 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 8 | DC operating voltage range | 0V 30V |
| Operating voltage range AC | 0V 30V | Current rating at 40° C | 2A |
| Surge resistance | 0.8kV | Shield | yes |
| Cable length | 5m | Cable characteristic | Standard |
| Bending radius, fixed cable installation | 32mm | Bending radius, flexible cable installation | 66mm |
| Cable diameter | 6.3mm | Cable diameter tolerance | ± 0.2 mm |
| Cable design | 8 x 0.25 mm2 | Nominal conductor cross section | 0.25mm2 |
| Wire ends | Tin-plated | Degree of protection | IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -25°C 80°C |
| Ambient temperature with flexible cable installation | -5°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Note on the contamination level | In mounted state | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Gray |
| Housing material | TPE-U(PUR) | Material of screw-type lock | Brass, chrome-plated |
| Seals material | NBR | Material of pin contacts | Copper alloy, gold-plated |
| Insulating sheath material | PP | Manufacturer ID | 542257 |
Specifications may be subject to change without notice
