Product Model

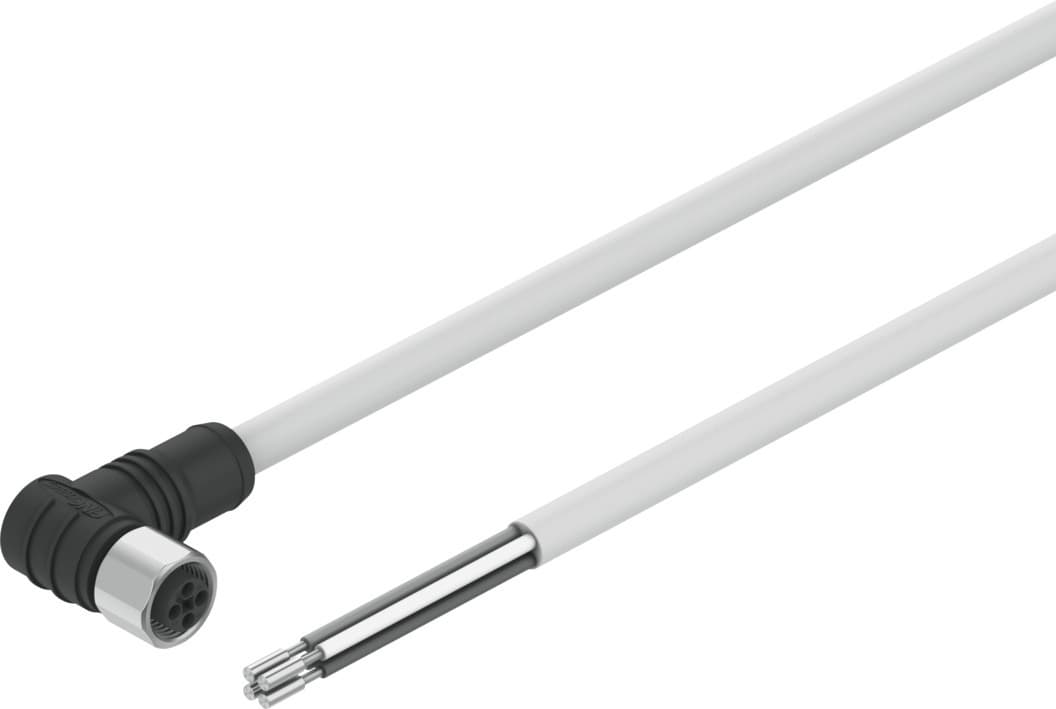

nebm-t12w4-r-3-le4
Key Features
- 1The NEBM-T12W4-R-3-LE4 connecting cable features a M12x1, A-coded electrical connection, ensuring secure and reliable connections in industrial settings.
- 2With a cable length of 5 meters and a weight of 410 grams, this cable is ideal for various robotic and automation applications.
- 3The cable supports a nominal operating voltage of DC 0 to 250 V and AC 0 to 30 V, making it versatile for different operational requirements.
- 4The NEBM-T12W4-R-3-LE4 cable has a current rating at 40°C of 4 A, ensuring efficient power transmission in high-temperature environments.
- 5This connecting cable is designed with a pollution degree of 3 and is suitable for robot applications, offering robust performance in challenging industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61076-2-111 | Cable designation | With label holder |
| Product weight | 256g | Electrical connection 1, function | Field device end |
| Electrical connection 1, design | Round | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, connection technology | M12x1, T-coded as per EN 61076-2-111 |
| Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, occupied pins/wires | 4 |
| Electrical connection 1, type of mounting | Screw-type lock | Electrical connection for input 1, connection pattern | Socket, M12x1 T-coded as per EN 61076-2-111, 4-pole |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 4 |
| Electrical connection 2, occupied pins/wires | 4 | DC operating voltage range | 0V 60V |
| Current rating at 40° C | 5A | Surge resistance | 1.5kV |
| Shield | no | Cable length | 3m |
| Cable characteristic | Suitable for robot applications | Connector cable test conditions | Test conditions on request |
| Bending radius, fixed cable installation | 30mm | Bending radius, flexible cable installation | 75mm |
| Cable diameter | 7.5mm | Cable diameter tolerance | ± 0.2 mm |
| Cable design | 4 x 0.75 mm2 | Nominal conductor cross section | AWG19 |
| Wire ends | Stripped | Degree of protection | IP67 |
| Note on degree of protection | In mounted state | Ambient temperature | -40°C 80°C |
| Ambient temperature with flexible cable installation | -20°C 80°C | CE marking (see declaration of conformity) | As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions | LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant | Contamination level | 3 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress | Material of cable sheath | PVC |
| Color cable sheath | Black | Housing material | TPE-U(PUR) |
| Housing colour | Black | Material of screw-type lock | High-alloy stainless steel |
| Seals material | HNBR | Material of pin contacts | Brass, gold-plated |
| Insulating sheath material | PVC | Manufacturer ID | 8140938 |
Specifications may be subject to change without notice
