Product Model
nebm-m16g8-e-25-q7-le8
Key Features

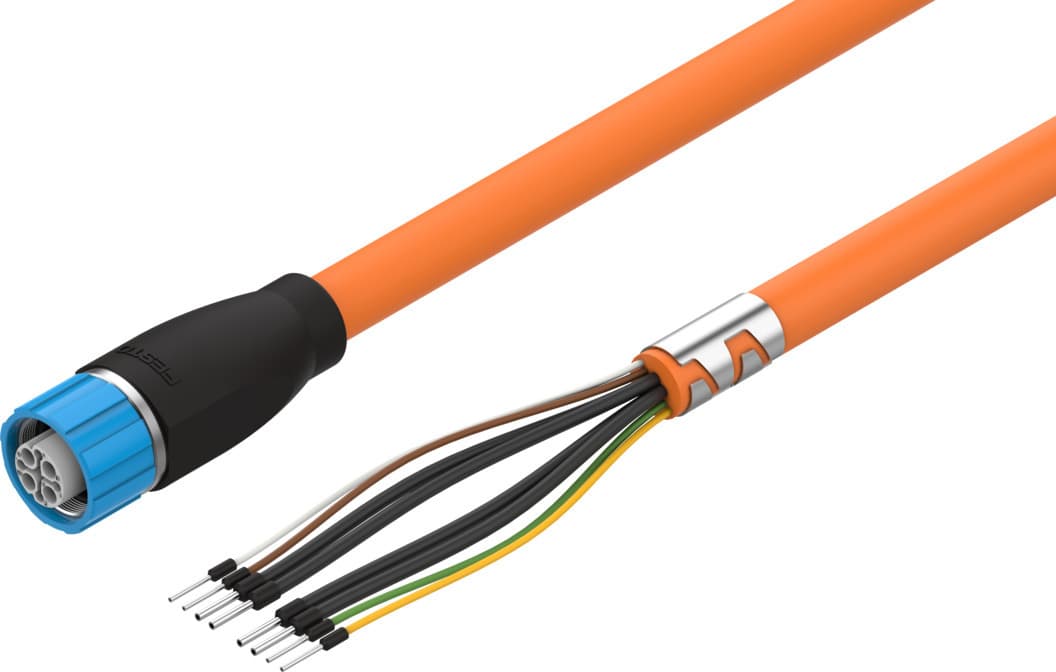

- 1The Festo NEBM-M16G8-E-2.5-Q7-LE8 motor cable is designed to meet the EN 61984 standard, ensuring high-quality and reliable electrical connections in industrial settings.
- 2This motor cable features a round design with a socket connection type, providing a secure and efficient way to connect field devices and controllers.
- 3With a cable diameter of 11 mm and a bending radius of 55 mm for fixed cables and 110 mm for moving cables, it offers flexibility and durability in various applications.
- 4The cable has a shielded structure with 4 x 0.75 mm² and 2 x (2 x 0.25 mm²) conductors, ensuring optimal performance and protection against electrical surges.
- 5The NEBM-M16G8-E-2.5-Q7-LE8 is CE marked and compliant with EU and UK RoHS directives, ensuring it meets all necessary safety and environmental standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Based on norm | EN 61984 | Cable designation | Without label holder |
| Electrical connection 1, function | Field device end | Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Socket | Electrical connection 1, cable outlet | Straight |
| Electrical connection 1, connection technology | M16x0.75 | Electrical connection 1, number of pins/wires | 8 |
| Electrical connection 1, occupied pins/wires | 6 | Electrical connection for input 1, connection pattern | 00995654 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | Cable |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 8 |
| Electrical connection 2, occupied pins/wires | 6 | DC operating voltage range | 0V 600V |
| Note on operating voltage range DC | 0 - 300 V for conductor cross-section of 0.25 mm2 | Operating voltage range AC | 0V 600V |
| Note on operating voltage range AC | 0 - 300 V for conductor cross-section of 0.25 mm2 | Current rating at 40° C | 12A |
| Note on acceptable current load at 40°C | 4 A for conductor cross-section of 0.25 mm2 | Surge resistance | 6kV |
| Note on surge resistance | 4 kV for a conductor cross-section of 0.25 mm2 | Shield | yes |
| Cable length | 25m | Cable characteristic | Suitable for energy chains |
| Bending radius, fixed cable installation | 55mm | Bending radius, flexible cable installation | 110mm |
| Cable diameter | 11mm | Cable design | 4 x 0.75 mm2 + 2 x (2 x 0.25 mm2) |
| Nominal conductor cross section | 0.25mm2 | Wire ends | Cable end sleeve |
| Degree of protection | IP65 | Note on degree of protection | In mounted state |
| Ambient temperature | -50°C 90°C | Ambient temperature with flexible cable installation | -40°C 90°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 0 - No corrosion stress |
| Material of cable sheath | TPE-U(PUR) | Color cable sheath | Orange |
| Insulating sheath material | TPE-E | Manufacturer ID | 5085050 |
Specifications may be subject to change without notice
