Product Model
nebm-l15g24-es-3-le24
Key Features

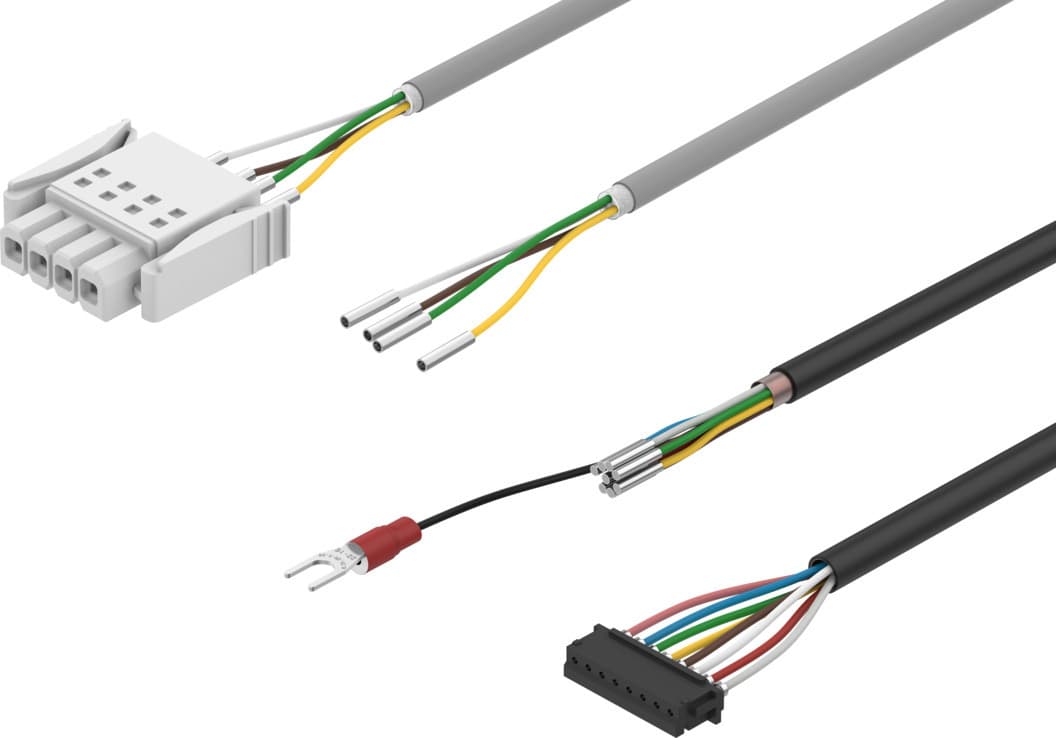

- 1The Festo NEBM-L15G24-ES-3-LE24 connecting cable is designed for reliable automation applications, ensuring high-quality electrical connections in various industrial settings.
- 2This cable features a length of 3 meters, making it ideal for medium-range connections in complex automation systems.
- 3The cable has a nominal cross-section of 0.75 mm², providing sufficient current rating at 40°C for efficient operation.
- 4The NEBM-L15G24-ES-3-LE24 is constructed with a durable TPE-U(PUR) housing and a black PVC insulating sheath, ensuring long-lasting performance.
- 5This connecting cable is compatible with various Festo products, including rotary gripper modules and motor cables, enhancing system integration and efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Cable designation | Without label holder | Product weight | 210g |
| Electrical connection 1, function | Field device end | Electrical connection 1, connection type | 4x socket |
| Electrical connection 1, cable outlet | Straight | Electrical connection 1, connection technology | Connection diagram L15 |
| Electrical connection 1, number of pins/wires | 24 | Electrical connection 1, occupied pins/wires | 24 |
| Electrical connection 2, function | Control side | Electrical connection 2, connection type | 4x cables |
| Electrical connection 2, connection technology | Open end | Electrical connection 2, number of pins/wires | 24 |
| Electrical connection 2, occupied pins/wires | 24 | Nominal operating voltage DC | 24V |
| Shield | yes | Cable length | 3m |
| Cable characteristic | Suitable for energy chains | Bending radius, fixed cable installation | 23.1mm |
| Bending radius, flexible cable installation | 33mm | Cable diameter | 3.3mm 4.6mm |
| Cable design | 2 x 4 x 0.25 mm2 + 2 x 8 x 0.08 mm2 | Nominal conductor cross section | 0.08mm2 0.25mm2 |
| Wire ends | Cable end sleeve | Ambient temperature | -40°C 70°C |
| Ambient temperature with flexible cable installation | -5°C 70°C | Storage temperature | -40°C 70°C |
| Relative air humidity | 0 - 100 % | Nominal altitude of use above sea level | <= 2000 m NHN |
| CE marking (see declaration of conformity) | As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| KC characters | KC EMC | LABS (PWIS) conformity | VDMA24364 zone III |
| Note on materials | RoHS-compliant | Material of cable sheath | PUR |
| Manufacturer ID | 8178802 |
Specifications may be subject to change without notice
