Product Model

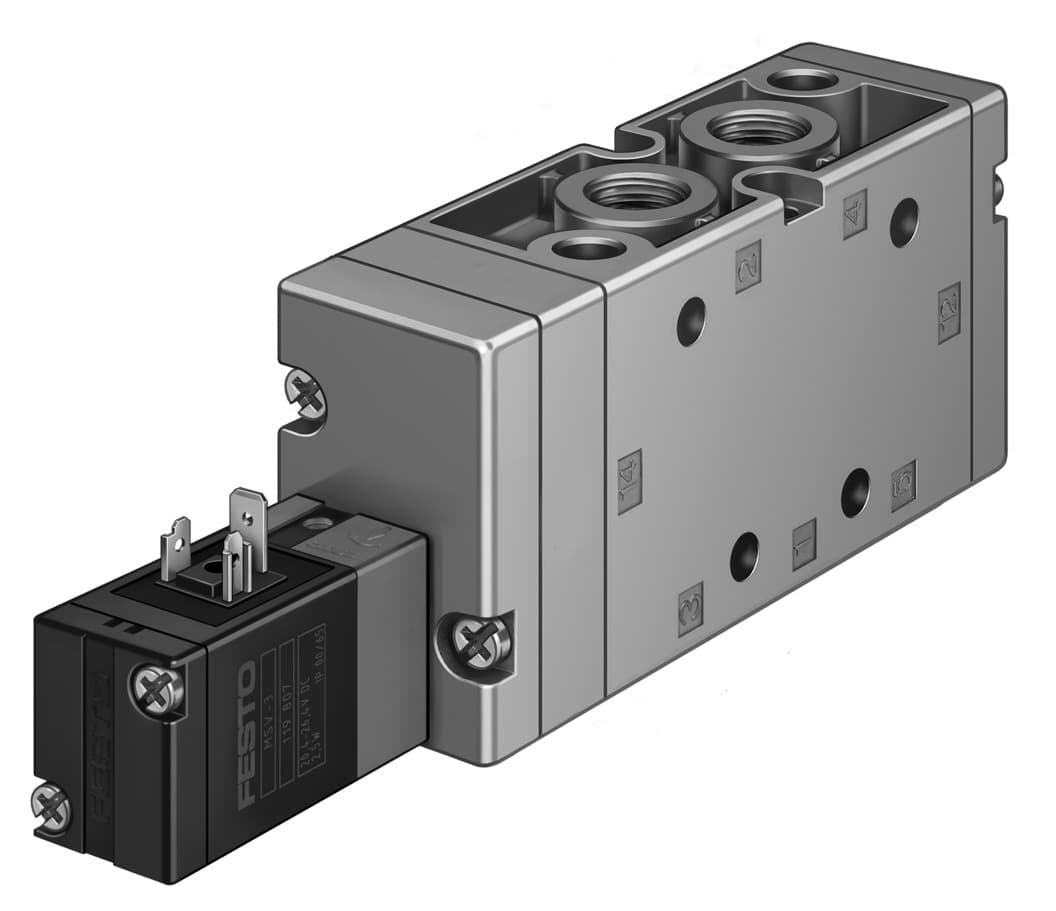

mvh-5-3/8-s-b
Key Features
- 1The Festo MVH-5-3/8-S-B is a well-tried component for safety-related applications, meeting ISO 13849-1 standards for reliability and safety.
- 2This valve features a mechanical spring return design with a lap overlap configuration, ensuring consistent performance and durability.
- 3The MVH-5-3/8-S-B has a high switching frequency of 3 Hz and can handle positive and negative test pulses of up to 2200 µs and 3700 µs respectively.
- 4Festo offers a wide range of pneumatic and electrical components, making it easy to integrate the MVH-5-3/8-S-B into various automation systems.
- 5The valve is available in new condition, factory-packed, and sealed for optimal performance and longevity, ensuring reliable operation in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 40mm | Standard nominal flow rate | 2000l/min |
| Pneumatic working port | G3/8 | Operating voltage | 24V DC |
| Operating pressure | -0.9bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Nominal width | 12mm |
| Width dimension | 41mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | External | Flow direction | Reversible |
| Symbol | 00991025 | Lap | Overlap |
| Pilot pressure MPa | 0.25MPa 1MPa | Pilot pressure | 2.5bar 10bar |
| Max. switching frequency | 3Hz | Switching time off | 60ms |
| On switching time | 22ms | Max. positive test pulse with 0 signal | 2200μs |
| Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | 24 V DC: 2.5 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -40°C 60°C |
| Temperature of medium | -5°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C 50°C | Product weight | 750g |
| Type of mounting | Optionally: On PR rail With through-hole | Auxiliary pilot air port 14 | G1/8 |
| Pilot exhaust air port 84 | M5 | Pilot air port 14 | G1/8 |
| Pneumatic connection 1 | G3/8 | Pneumatic connection 2 | G3/8 |
| Pneumatic connection 3 | G3/8 | Pneumatic connection 4 | G3/8 |
| Pneumatic connection 5 | G3/8 | Note on materials | RoHS-compliant |
| Seals material | NBR | Housing material | Die-cast aluminum |
| Manufacturer ID | 15342 |
Specifications may be subject to change without notice
