Product Model
mvh-5-3/8-b
Key Features

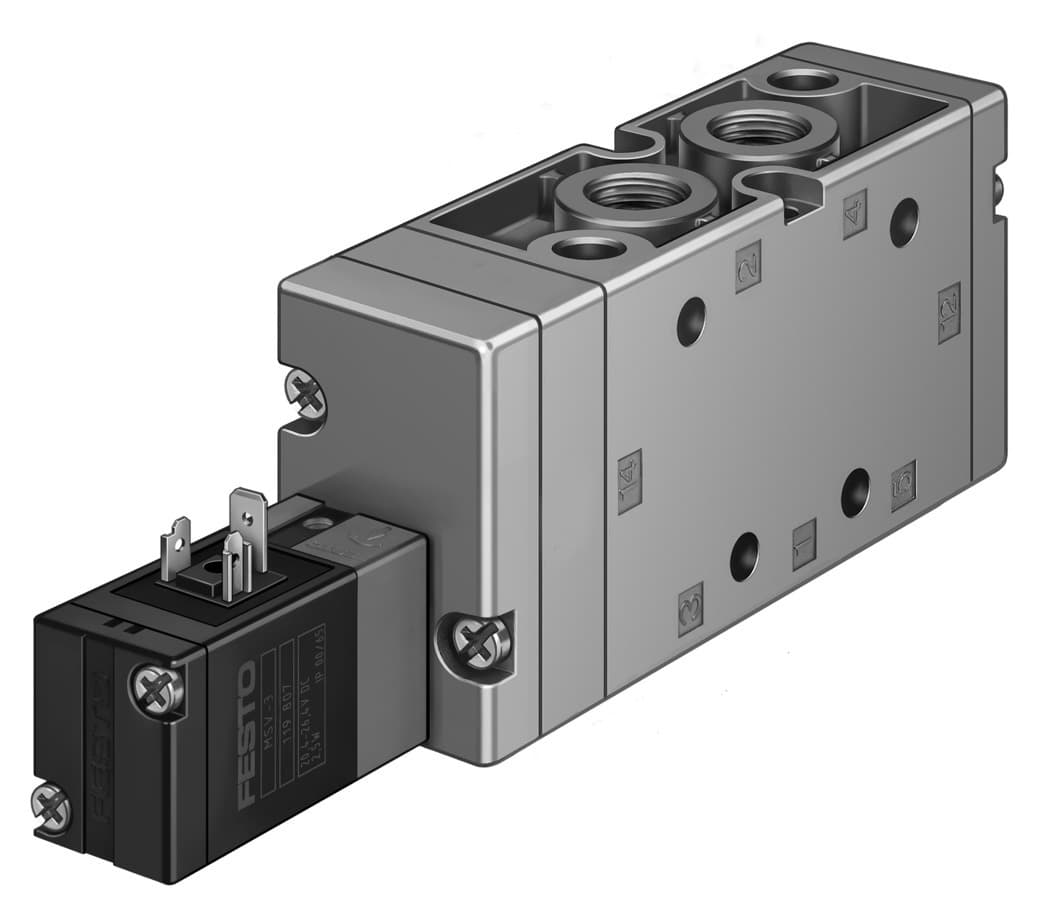

- 1The Festo MVH-5-3/8-B solenoid valve offers a 5/2-way monostable function, ensuring precise control and reliable operation in various industrial applications.
- 2With a standard nominal flow rate of 2000 l/min and operating pressure range of 0.25 MPa to 1 MPa, this valve is ideal for demanding pneumatic systems.
- 3The valve features a mechanical spring return and soft sealing principle, providing a durable and low-maintenance solution for your automation needs.
- 4The Festo MVH-5-3/8-B is designed with a compact 40 mm width and G3/8 pneumatic working port, making it easy to integrate into your existing systems.
- 5This solenoid valve is RoHS-compliant and features a die-cast aluminum housing, ensuring high-quality construction and environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | 5/2, monostable | Actuation type | Electrical |
| Width | 40mm | Standard nominal flow rate | 2000l/min |
| Pneumatic working port | G3/8 | Operating voltage | 24V DC |
| Operating pressure | 2.5bar 10bar | Structural design | Piston gate valve |
| Reset method | Mechanical spring | Nominal width | 12mm |
| Width dimension | 41mm | Exhaust air function | With flow control option |
| Sealing principle | Soft | Mounting position | Any |
| Manual override | Non-detenting | Type of control | Pilot-controlled |
| Pilot air supply port | Internal | Flow direction | Non-reversible |
| Symbol | 00991035 | Lap | Overlap |
| Max. switching frequency | 3Hz | Switching time off | 60ms |
| On switching time | 22ms | Max. positive test pulse with 0 signal | 2200μs |
| Max. negative test pulse on 1 signal | 3700μs | Coil characteristics | 24 V DC: 2.5 W |
| Permissible voltage fluctuations | +/- 10 % | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -40°C 60°C |
| Temperature of medium | -5°C 50°C | Ambient temperature | -5°C 50°C |
| Product weight | 750g | Type of mounting | Optionally: On PR rail With through-hole |
| Pilot exhaust air port 84 | M5 | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
| Pneumatic connection 4 | G3/8 | Pneumatic connection 5 | G3/8 |
| Note on materials | RoHS-compliant | Seals material | NBR |
| Housing material | Die-cast aluminum | Manufacturer ID | 14945 |
Specifications may be subject to change without notice
