Product Model

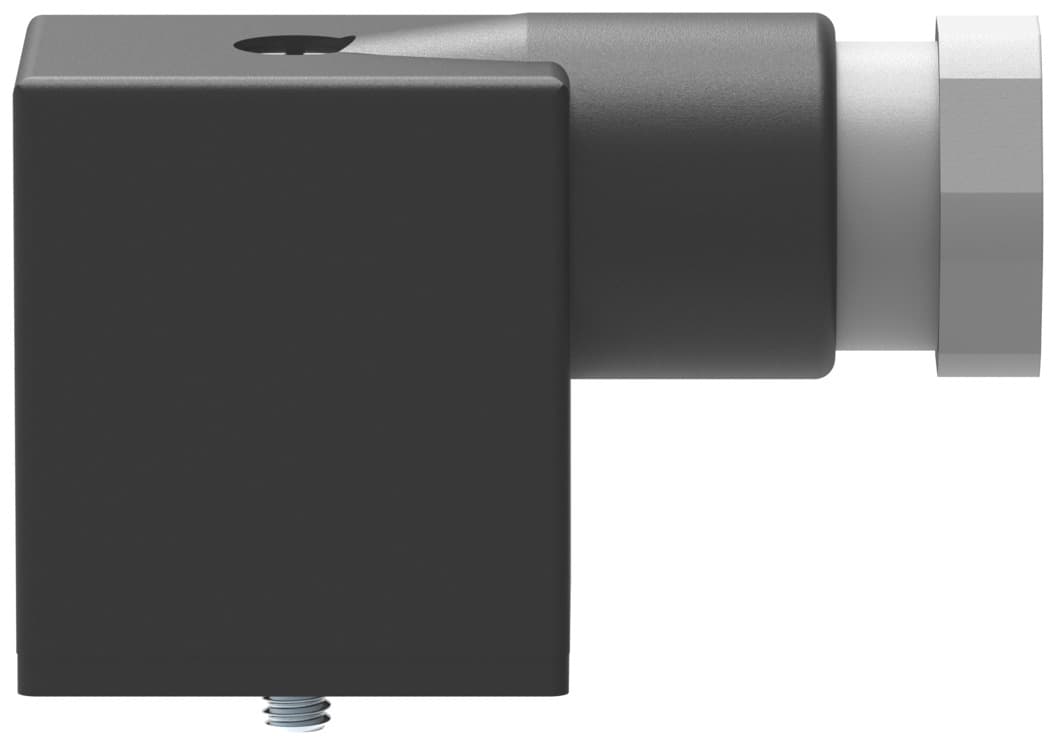

mssd-f-m16
Key Features
- 1Angled Cable Outlet with 180° Rotation: The MSSD-F-M16 features an angled cable outlet that can be rotated 180°, providing flexibility and ease of use in various industrial settings.
- 2High-Current Rating: With a current rating of 6 A at 40°C, this plug socket is suitable for applications requiring high electrical current.
- 3Robust Construction: Made from PA-reinforced polymer, the MSSD-F-M16 offers excellent durability and resistance to corrosion, ensuring reliable performance in harsh environments.
- 4Wide Operating Voltage Range: Compatible with both DC and AC voltages ranging from 0 to 250 V, this plug socket is versatile and adaptable to various industrial power sources.
- 5IP65 Protection: The MSSD-F-M16 is designed with IP65 protection, making it resistant to dust and water ingress, ensuring safe operation in demanding industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Contact durability | 50 | Cable outlet | Angled |
| Note on cable outlet | Can be rotated through 180° | Product weight | 35g |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram form B as per industrial standard, 11 mm | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | On air solenoid valve with M3 central screw | Electrical connection for input 1, connection pattern | 00995619 |
| Electrical connection 2, connection technology | Screw terminal | DC operating voltage range | 0V 250V |
| Operating voltage range AC | 0V 250V | Current rating at 40° C | 6A |
| Surge resistance | 2kV | Protective earth connection | Available |
| Cable fitting | M16x1.5 | Cable diameter | 6mm 8mm |
| Nominal conductor cross section | 0.75mm2 | Degree of protection | IP65 |
| Note on degree of protection | In mounted state | Ambient temperature | -20°C 115°C |
| LABS (PWIS) conformity | VDMA24364-B2-L | Note on materials | RoHS-compliant |
| Contamination level | 3 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA-reinforced | Housing colour | Black |
| Seals material | HNBR | Manufacturer ID | 539710 |
Specifications may be subject to change without notice
