Product Model
mssd-f
Key Features

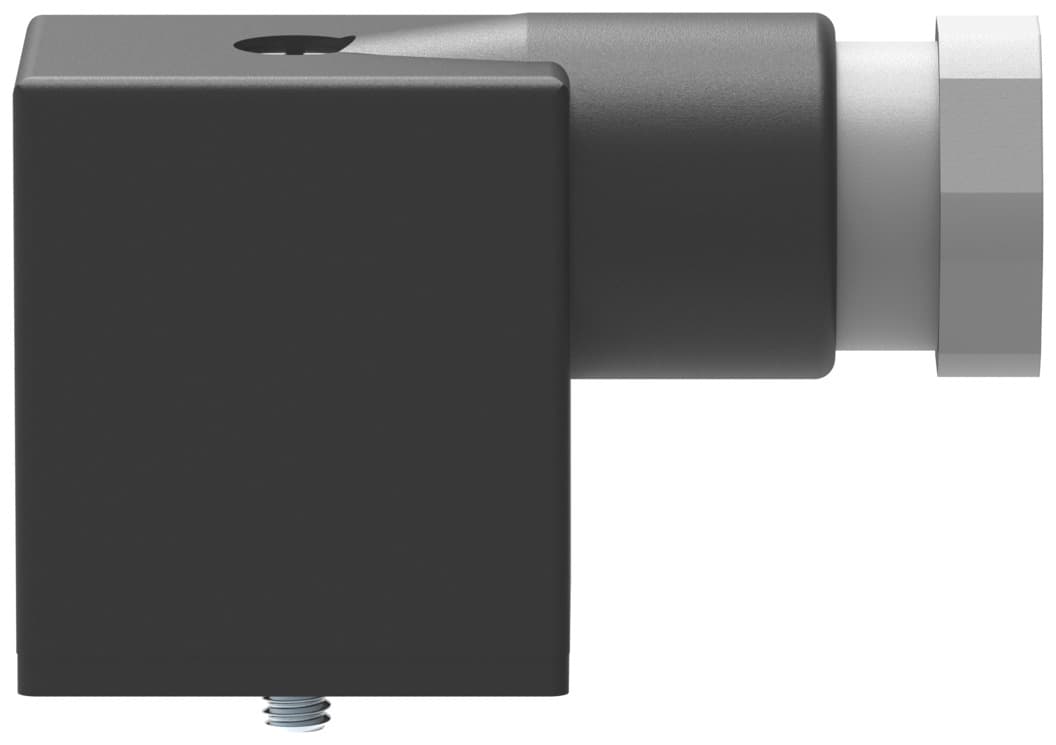

- 1The Festo MSSD-F plug socket is designed for mounting on solenoid valves with an M3 central screw, ensuring secure and easy installation.
- 2This plug socket features a rectangular design with an angled socket, providing a compact and space-efficient solution for various applications.
- 3The MSSD-F is rated for a wide ambient temperature range of -25°C to 90°C, making it suitable for use in various environmental conditions.
- 4With a protection class of IP65, the MSSD-F offers robust protection against dust and water, ensuring reliable operation in harsh environments.
- 5The plug socket is made from high-quality plastic with a black housing, meeting RoHS compliance standards and ensuring durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | On air solenoid valve with M3 central screw | Cable outlet | Angled |
| Note on cable outlet | Can be rotated through 180° | Mounting position | Any |
| Product weight | 17g | Electrical connection | 3-pin Socket, angled Rectangular design MSF |
| Electrical connection 1, design | Rectangular | Electrical connection 1, connection type | Socket |
| Electrical connection 1, cable outlet | Angled | Electrical connection 1, number of pins/wires | 3 |
| Electrical connection for input 1, connection pattern | 00995628 | Electrical connection 2 | Screw terminal |
| DC operating voltage range | 0V 250V | Operating voltage range AC | 0V 250V |
| Current rating at 40° C | 16A | Protective earth connection | Available |
| Cable fitting | Pg9 | Cable diameter | 6mm 8mm |
| Nominal conductor cross section | 1.5mm2 | Degree of protection | IP65 |
| Note on degree of protection | In mounted state | Ambient temperature | -25°C 90°C |
| CE marking (see declaration of conformity) | As per EU low voltage directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK RoHS instructions To UK instructions for electrical equipment |
| LABS (PWIS) conformity | VDMA24364-B2-L | Housing material | Polymer |
| Housing colour | Black | Seals material | NBR |
| Manufacturer ID | 34431 |
Specifications may be subject to change without notice
