Product Model
mssd-e
Key Features

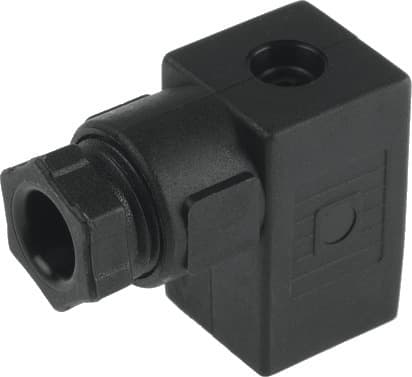

- 1The Festo MSSD-E plug socket ensures a secure and reliable electrical connection to solenoid valves, making it ideal for various industrial applications.
- 2The plug socket can be mounted on any air solenoid valve using an M3 central screw, providing flexibility in installation.
- 3With a current rating of 6 A at 40°C, the MSSD-E plug socket can handle high power requirements, ensuring efficient operation in demanding environments.
- 4Made from PA-reinforced material, the plug socket offers excellent durability and resistance to environmental factors, ensuring long-term performance.
- 5The MSSD-E plug socket is designed with an IP65 rating, providing protection against dust and water, making it suitable for harsh industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Type of mounting | On air solenoid valve with M3 central screw | Mounting position | Any |
| Product weight | 8g | Electrical connection 1 | Angled socket, rectangular design, 3-pin, form C |
| Electrical connection 2 | Screw terminal | DC operating voltage range | 0V 300V |
| Operating voltage range AC | 0V 250V | Current rating at 40° C | 6A |
| Cable fitting | Pg7 | Cable diameter | 6mm 8mm |
| Connection cross section | 0.75mm2 | Degree of protection | IP65 |
| Ambient temperature | -25°C 90°C | LABS (PWIS) conformity | VDMA24364-B2-L |
| Contamination level | 3 | Housing material | PA-reinforced |
| Housing colour | Black | Seals material | NBR |
| Manufacturer ID | 14098 |
Specifications may be subject to change without notice
