Product Model
hgwm-12-eo-g8
Key Features

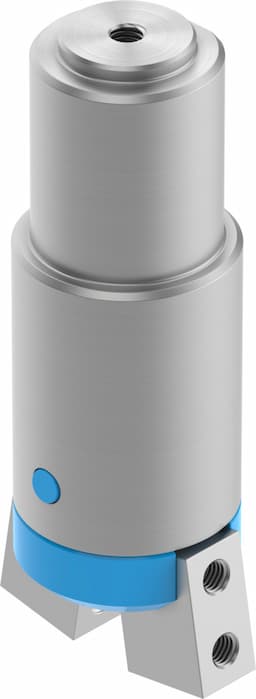

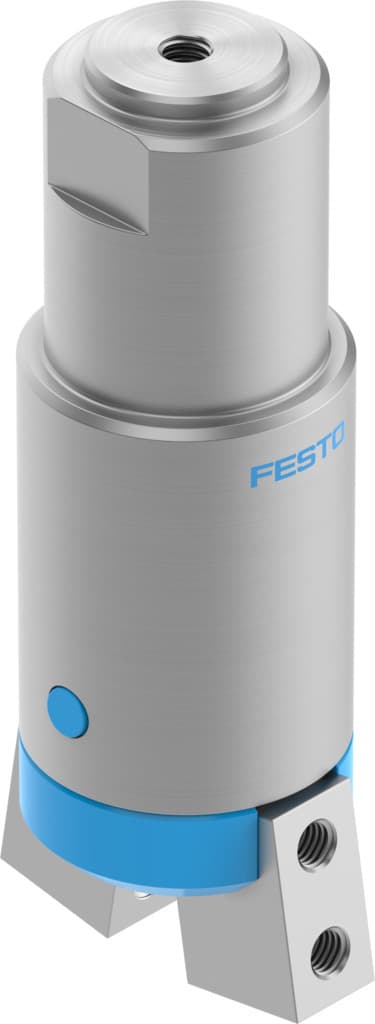

- 1The HGWM-12-EO-G8 angle gripper offers a maximum angular jaw backlash of 0.5 degrees and a repetition accuracy of 0.02 mm, ensuring precise handling in various applications.
- 2This single-acting gripper operates with compressed air, providing a maximum operating frequency of 4 Hz and a fast opening time of 3.7 ms at 6 bar.
- 3Constructed with high-alloy stainless steel for the housing and high-alloy steel for the gripper jaws, the HGWM-12-EO-G8 is built to withstand moderate corrosion stress.
- 4The gripper features a wedge-shaped drive and can be easily integrated into various pneumatic systems, making it a versatile solution for automation needs.
- 5Weighing only 45 grams, the HGWM-12-EO-G8 is a compact and lightweight option for applications requiring precise and efficient gripping.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 18.5deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Mode of operation | Single-acting Open | Gripper function | Angle |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991897 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 3.7ms |
| Min. closing time at 6 bar | 1.8ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Spring return torque | 0.013Nm |
| Total gripping torque at 6 bar, closing | 64Ncm | Mass moment of inertia | 215.4kgcm2 |
| Mass moment of inertia per external gripper finger | 560kgcm2 | Maximum force on gripper jaw Fz, static | 20N |
| Maximum torque on gripper jaw, Mx static | 0.4Nm | Maximum torque on gripper jaw, My static | 0.4Nm |
| Maximum torque on gripper jaw, Mz static | 0.4Nm | Max. mass per external gripper finger | 1000g |
| Product weight | 45g | Type of mounting | Clamped |
| Pneumatic connection | M3 | Cover cap material | POM |
| Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
| Manufacturer ID | 185701 |
