Product Model
hgwm-08-ez-g7
Key Features

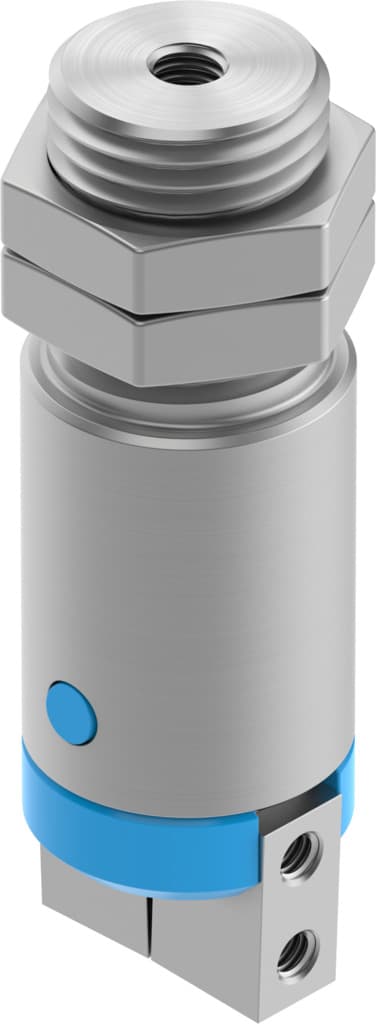

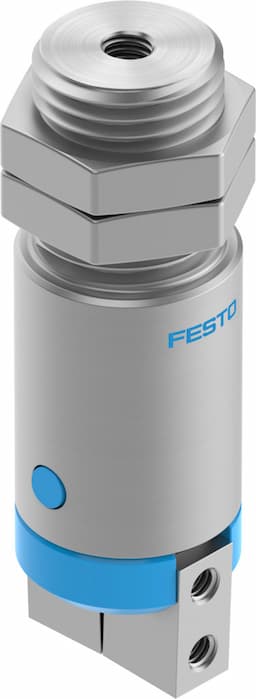

- 1The Festo HGWM-08-EZ-G7 angled gripper offers angular jaw operation, ensuring precise handling and control in various industrial applications.
- 2With a grip force of 0.24 N, this gripper provides reliable and consistent performance, making it ideal for tasks requiring precise force application.
- 3The gripper features a cylinder bore of 8 mm and two gripper fingers, allowing for efficient and compact design that fits into a wide range of automation systems.
- 4The maximum opening angle of 14 degrees provides flexibility in handling different types of objects, making it versatile for various industrial tasks.
- 5The HGWM-08-EZ-G7 is part of Festo's comprehensive range of pneumatic components, ensuring compatibility and integration with other Festo products for seamless automation solutions.
- 6The HGWM-08-EZ-G7 features angular jaw operation, which allows for precise and controlled movement of the gripper jaws.
- 7The gripper has a grip force of 0.24 N, providing consistent and reliable performance in handling various objects.
- 8The cylinder bore is 8 mm, ensuring compact design and efficient integration into automation systems.
- 9The gripper has two gripper fingers, which enhance its gripping capability and versatility.
- 10The maximum opening angle is 14 degrees, allowing for flexible handling of different types of objects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mode of operation | Single-acting Closed |
| Gripper function | Angle | Gripping force backup | Without |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991898 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1ms |
| Min. closing time at 6 bar | 2.5ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Spring return torque | 0.006Nm |
| Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 24Ncm | Mass moment of inertia | 31.5kgcm2 |
| Mass moment of inertia per external gripper finger | 250kgcm2 | Maximum force on gripper jaw Fz, static | 7N |
| Maximum torque on gripper jaw, Mx static | 0.2Nm | Maximum torque on gripper jaw, My static | 0.2Nm |
| Maximum torque on gripper jaw, Mz static | 0.2Nm | Max. mass per external gripper finger | 400g |
| Product weight | 14g | Type of mounting | With lock nut |
| Pneumatic connection | M3 | Note on materials | RoHS-compliant |
| Cover cap material | POM | Housing material | High-alloy stainless steel |
| Gripper jaw material | High-alloy steel | Manufacturer ID | 185697 |
Specifications may be subject to change without notice
