Product Model
hgwm-08-ez-g6
Key Features

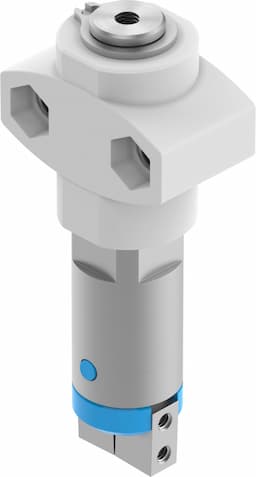

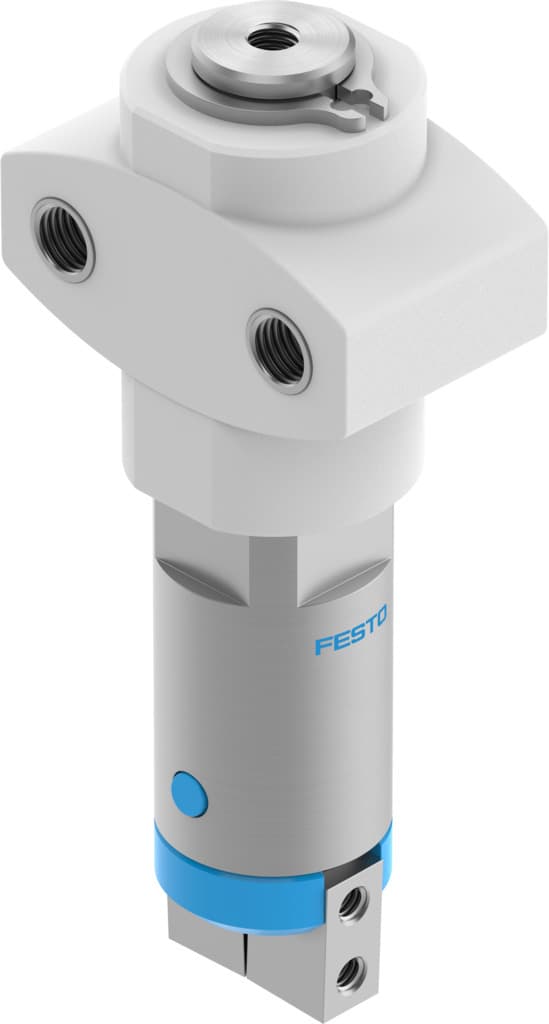

- 1The Festo HGWM-08-EZ-G6 angle gripper offers a maximum repetition accuracy of 0.02 mm, ensuring precise gripping and handling of components.
- 2Available in different mounting configurations, including flange with stroke compensation (G6), thread (G7), and clamping shaft (G8), to suit various industrial setups.
- 3Built with high-alloy stainless steel material for the housing and high-alloy steel for the gripper jaws, providing durability and resistance to corrosion.
- 4Features a pneumatic drive system with a maximum operating frequency of 4 Hz, ensuring fast and reliable operation in various environments.
- 5Includes free lifetime technical support and free shipping on orders over $1,000, providing peace of mind for users.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 8 | Max. gripper jaw angular play ax, ay | 0.5deg |
| Max. gripper jaw backlash Sz | 0.03mm | Max. opening angle | 14deg |
| Pneumatic gripper repetition accuracy | 0.02mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mode of operation | Single-acting Closed |
| Gripper function | Angle | Gripping force backup | Without |
| Structural design | Inclined plane | Position sensing | None |
| Symbol | 00991898 | Operating pressure | 2bar 8bar |
| Max. operating frequency of pneumatic gripper | 4Hz | Min. opening time at 6 bar | 1ms |
| Min. closing time at 6 bar | 2.5ms | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | 5°C 60°C | Stroke compensation spring force | 4N 6N |
| Spring return torque | 0.006Nm | Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening | 24Ncm |
| Mass moment of inertia | 70.5kgcm2 | Mass moment of inertia per external gripper finger | 250kgcm2 |
| Maximum force on gripper jaw Fz, static | 7N | Maximum torque on gripper jaw, Mx static | 0.2Nm |
| Maximum torque on gripper jaw, My static | 0.2Nm | Maximum torque on gripper jaw, Mz static | 0.2Nm |
| Max. mass per external gripper finger | 400g | Product weight | 23g |
| Type of mounting | With internal thread | Pneumatic connection | M3 |
| Note on materials | RoHS-compliant | Cover cap material | POM |
| Housing material | High-alloy stainless steel | Gripper jaw material | High-alloy steel |
| Manufacturer ID | 185696 |
Specifications may be subject to change without notice
