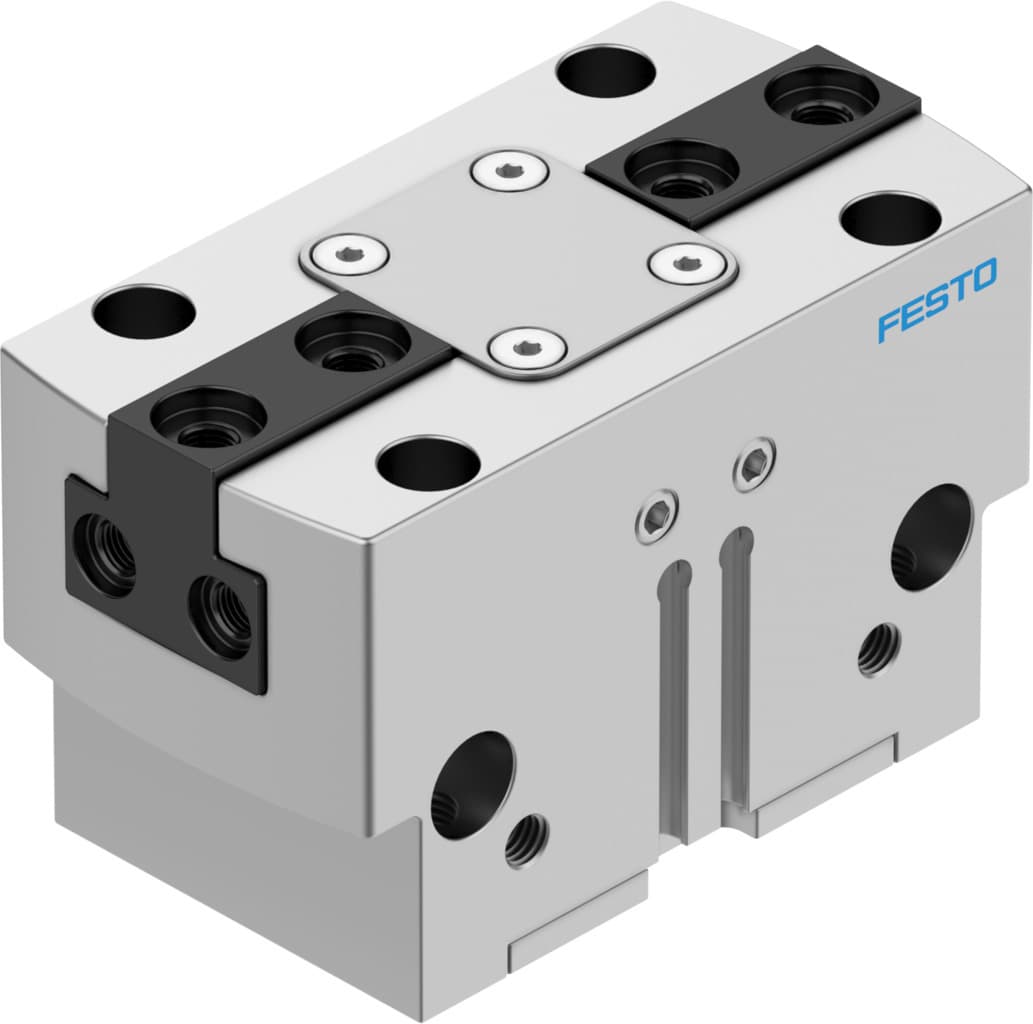

Product Model
hgpt-35-a-b
Key Features
- 1High precision with max. replacement accuracy of <= 0.2 mm.
- 2Double-acting mode of operation for versatile use.
- 3Robust construction with hardened steel gripper jaws.
- 4Operating pressure range from 3 to 8 bar for flexibility.
- 5IP40 protection category for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 35 | Stroke per gripper jaw | 8mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
| Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mounting position | Any |
| Mode of operation | Double-acting | Gripper function | Parallel |
| Gripping force backup | Without | Structural design | Inclined plane Positively driven motion sequence |
| Position sensing | For proximity sensor | Symbol | 00991894 |
| Operating pressure | 3bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
| Max. operating frequency of pneumatic gripper | 3Hz | Min. opening time at 6 bar | 36ms |
| Min. closing time at 6 bar | 67ms | Max. mass per external gripper finger | 180g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP40 | Ambient temperature | 5°C 60°C |
| Gripping force per gripper jaw at 6 bar, opening | 245N | Gripping force per gripper jaw at 6 bar, closing | 229N |
| Mass moment of inertia | 2.807kgcm2 | Maximum force on gripper jaw Fz, static | 1800N |
| Maximum torque on gripper jaw, Mx static | 80Nm | Maximum torque on gripper jaw, My static | 60Nm |
| Maximum torque on gripper jaw, Mz static | 50Nm | Relubrication interval for guidance elements | 5MioCyc |
| Product weight | 490g | Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin |
| Sealing air pneumatic connection | M5 | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover cap material | High-alloy stainless steel |
| Housing material | Aluminum, anodized | Gripper jaw material | Hardened steel |
| Manufacturer ID | 560210 |
Specifications may be subject to change without notice
