Product Model

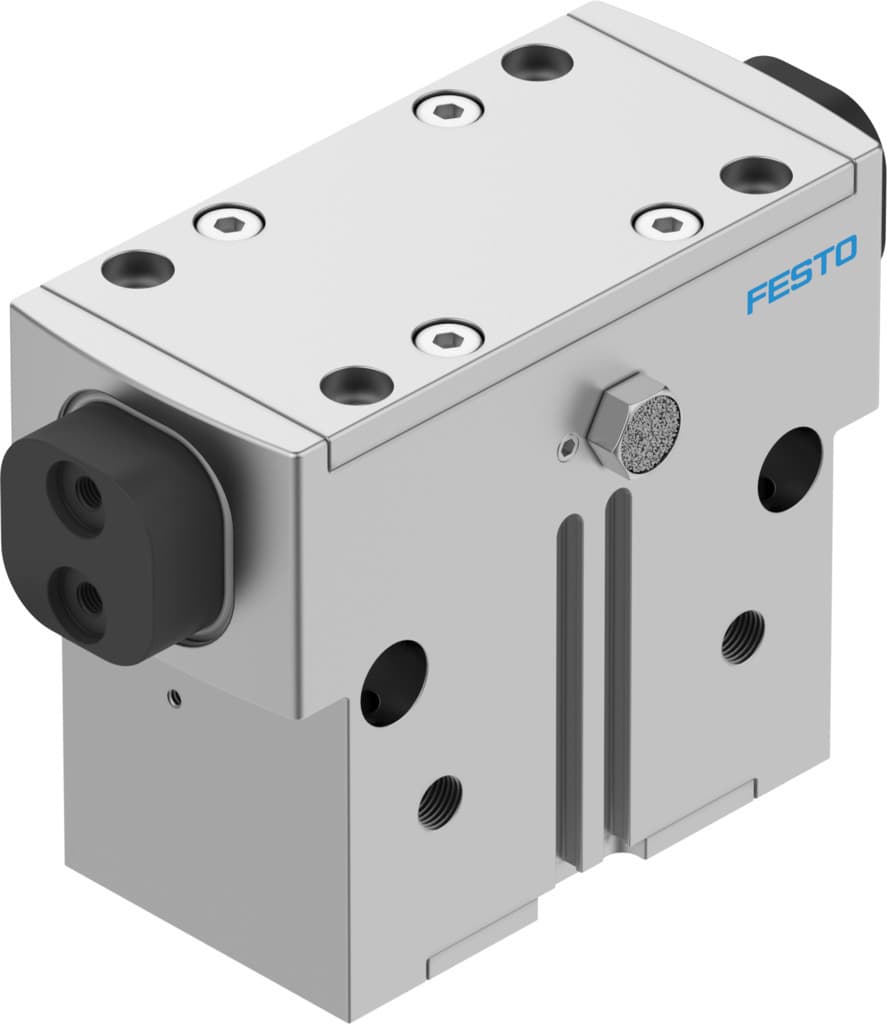

hgpd-50-a-g1
Key Features
- 1High Precision Handling: The HGPD-50-A-G1 offers a maximum replacement accuracy of <= 0.2 mm and a repetition accuracy of <= 0.05 mm, ensuring precise handling in various applications.
- 2Parallel Gripping Type: This gripper features a parallel gripping type, providing consistent and reliable gripping force with two gripper fingers.
- 3Robust Design: Constructed with high alloy steel for the cover cap and hardened steel for the gripper jaws, this gripper is designed to withstand moderate corrosion stress and operate in a wide temperature range (5-60°C).
- 4Efficient Operation: With a stroke of 12 mm and an operating pressure range of 4-8 bar, the HGPD-50-A-G1 ensures efficient operation in various industrial settings.
- 5Versatile Mounting Options: Available with internal thread and centring sleeve, through-hole and centring sleeve, and through-hole and dowel pin mounting options, this gripper can be easily integrated into different systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke per gripper jaw | 12mm |
| Max. interchangeability | 0.2mm | Max. gripper jaw angular play ax, ay | 0.1deg |
| Max. gripper jaw backlash Sz | 0.02mm | Rotational symmetry | 0.2mm |
| Pneumatic gripper repetition accuracy | 0.05mm | Number of gripper jaws | 2 |
| Actuator system | Pneumatic | Mounting position | Any |
| Mode of operation | Double-acting | Gripper function | Parallel |
| Gripping force backup | On opening | Structural design | Inclined plane Positively driven motion sequence |
| Position sensing | For proximity sensor | Symbol | 00995947 |
| Operating pressure | 4bar 8bar | Operating pressure for sealing air | 0bar 0.5bar |
| Max. operating frequency of pneumatic gripper | 2Hz | Min. opening time at 6 bar | 85ms |
| Min. closing time at 6 bar | 176ms | Max. mass per external gripper finger | 813g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 | Ambient temperature | 5°C 60°C |
| Mass moment of inertia | 36.74kgcm2 | Maximum torque on gripper jaw, Mx static | 90Nm |
| Maximum torque on gripper jaw, My static | 60Nm | Maximum torque on gripper jaw, Mz static | 50Nm |
| Relubrication interval for guidance elements | 5MioCyc | Product weight | 2150g |
| Type of mounting | Optionally: With internal thread and centering sleeve Via through-hole and centering sleeve With through-hole and dowel pin With internal thread and dowel pin | Sealing air pneumatic connection | M5 |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover cap material | High-alloy stainless steel | Housing material | Aluminum, anodized |
| Gripper jaw material | Hardened steel | Manufacturer ID | 1132952 |
Specifications may be subject to change without notice
