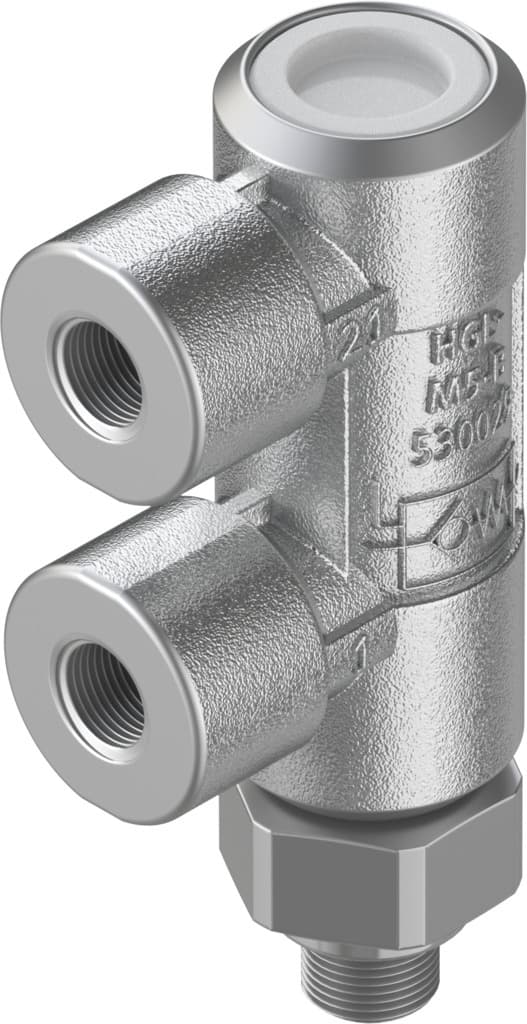

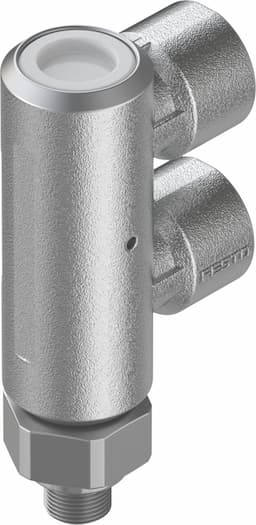

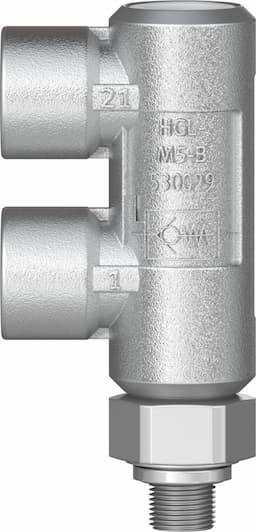

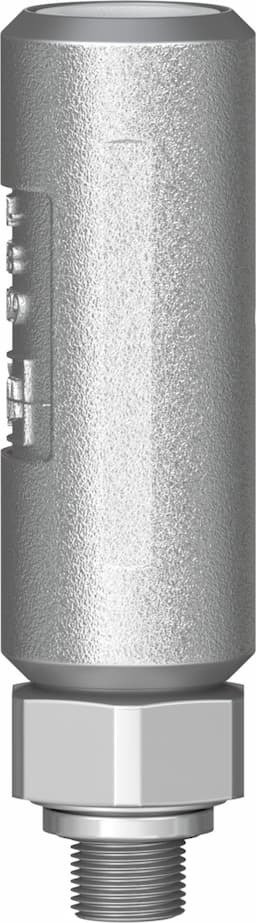

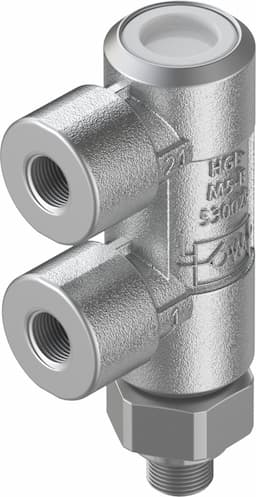

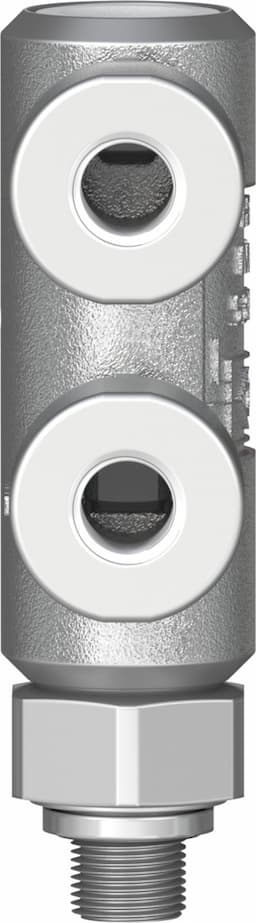

Product Model
hgl-m5-b
Key Features
- 1The Festo HGL-M5-B features a piloted non-return function, ensuring one-way flow control in pneumatic systems.
- 2This valve offers standard flow rates of 200 l/min and 130 l/min, making it suitable for various industrial applications.
- 3With M5 threaded connections, the HGL-M5-B is designed for easy installation and minimal space requirements.
- 4Built with die-cast zinc and anodized aluminum, this valve provides moderate corrosion resistance and durability.
- 5The HGL-M5-B is RoHS-compliant and meets ISO 14644-1 Class 4 cleanroom standards, ensuring it is suitable for a wide range of environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Unlockable non-return function | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Pilot air port 21 | M5 |
| Actuation type | Pneumatic | Type of mounting | Screw-in With external thread |
| Operating pressure | 0.5bar 10bar | Pilot pressure MPa | 0.2MPa 1MPa |
| Pilot pressure | 2bar 10bar | Pilot pressure psi | 29psi 145psi |
| Ambient temperature | -10°C 60°C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Maritime classification | See certificate | Mounting position | Any |
| Symbol | 00991456 | Standard flow rate 1->2 (6-0) | 200l/min |
| Standard nominal flow rate 1->2 (6-5) | 130l/min | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Storage temperature | -10°C 60°C |
| Temperature of medium | -10°C 60°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Nominal tightening torque | 1.25Nm | Tolerance for nominal tightening torque | ± 10% |
| Product weight | 21g | Note on materials | RoHS-compliant |
| Seals material | NBR | Hollow bolt material | Wrought aluminum alloy Anodized |
| Releasing ring material | POM | Non-return collar material | NBR |
| Swivel joint material | Die-cast zinc | Manufacturer ID | 530029 |
Specifications may be subject to change without notice
