Product Model
hgl-3/8-npt
Key Features

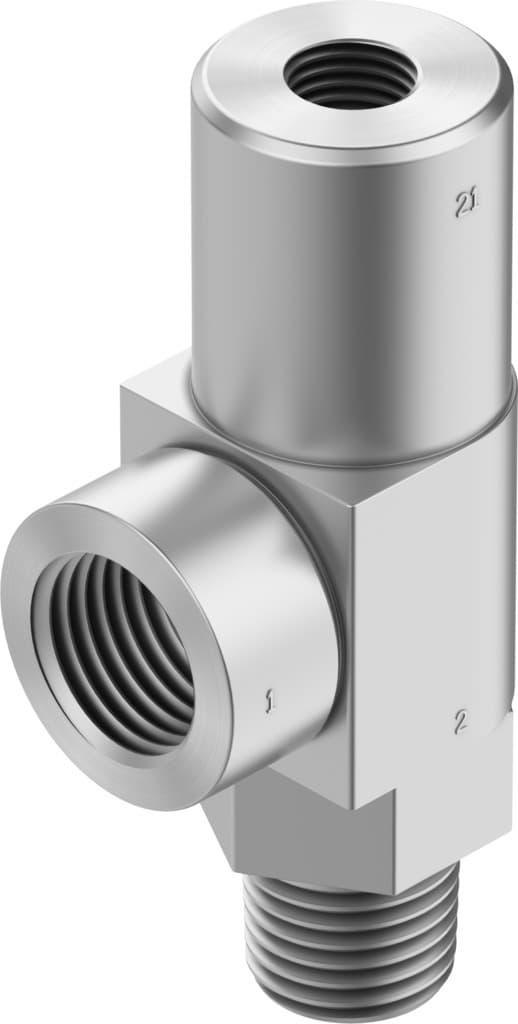

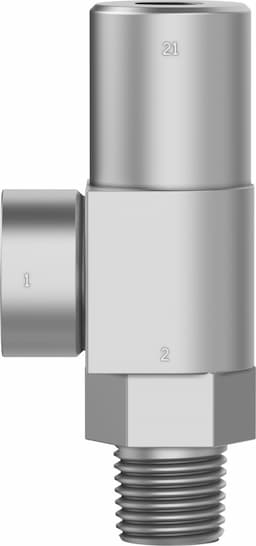

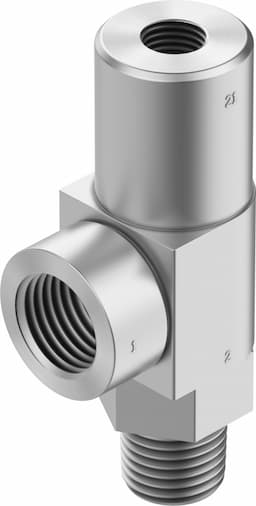

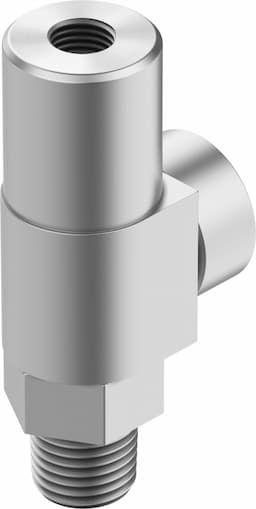

- 1The Festo HGL-3/8-NPT pneumatic check valve features a piloted non-return function with a rotary body, ensuring precise control in pneumatic systems.
- 2This valve is designed with a 3/8" NPT threaded connection, making it easy to integrate into various pneumatic setups.
- 3The HGL-3/8-NPT check valve is built to withstand operating pressures from 7.5 to 150 psi, providing robust performance in demanding applications.
- 4With a response time of 8 ms (on) and 17 ms (off) at 90 psi, this valve ensures quick and reliable operation in pneumatic circuits.
- 5The Festo HGL-3/8-NPT check valve is constructed from high-quality materials, including brass housing and Buna N seals, ensuring durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Unlockable non-return function | Pneumatic connection 1 | 3/8 NPT |
| Pneumatic connection 2 | 3/8 NPT | Type of mounting | Screw-in |
| Standard nominal flow rate | 0l/min 900l/min | Operating pressure | 0.2bar 10bar |
| Pilot pressure MPa | 0.12MPa 1MPa | Pilot pressure | 1.2bar 10bar |
| Pilot pressure psi | 17.4psi 145psi | Ambient temperature | -20°C 80°C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Symbol | 00991456 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 80°C | Note on materials | RoHS-compliant |
| Manufacturer ID | 34879 |
Specifications may be subject to change without notice
