Product Model

he-2-3/8-qs-10

Manufacturer

Festo

Key Features

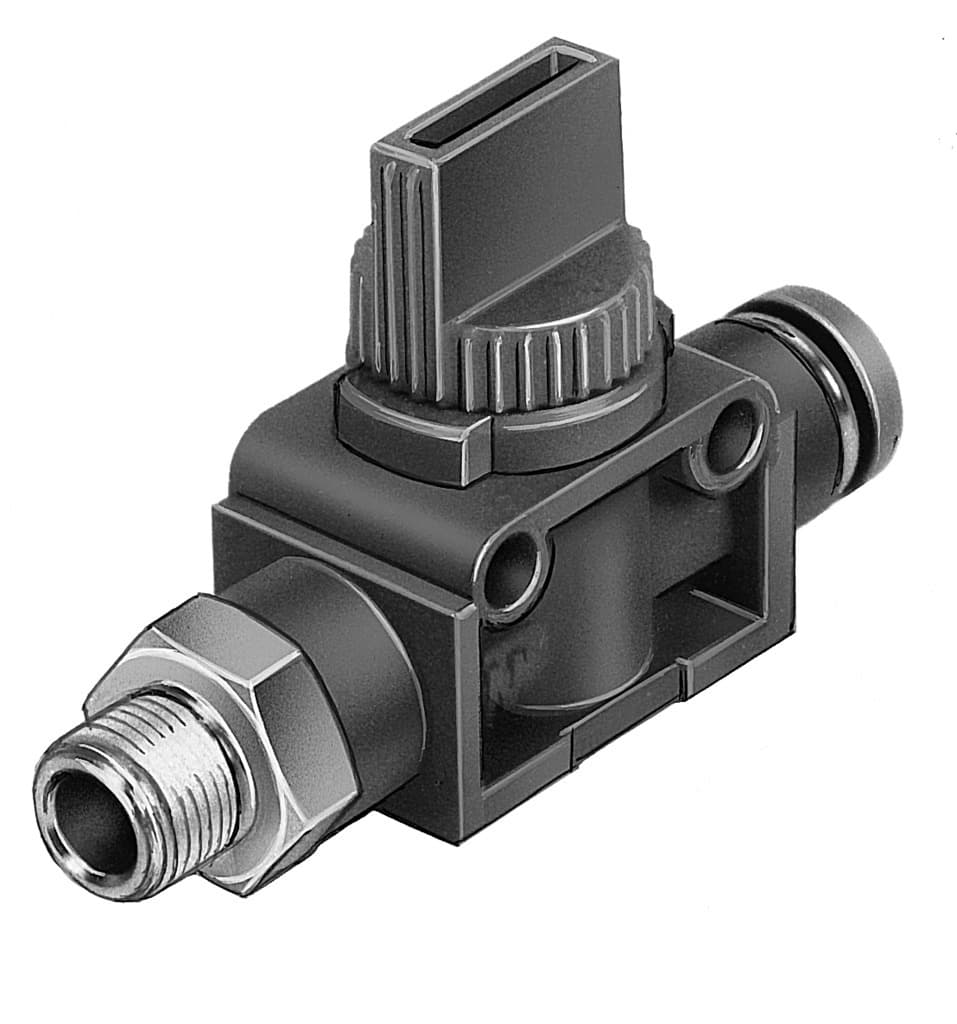

1The Festo HE-2-3/8-QS-10 is a 2/2-way manually-actuated pneumatic shut-off valve designed for non-reversing flow and soft sealing, ensuring reliable operation in various applications.
2This valve features a standard nominal flow rate of 760.5 l/min and a nominal width of 3.2 mm, making it suitable for a wide range of pneumatic control systems.
3The HE-2-3/8-QS-10 is constructed with a Messing vernickelt screwed trunnion and uses NBR seals, ensuring high corrosion resistance and durability.
4The valve operates within a temperature range of 0°C to 60°C for both ambient and medium temperatures, making it versatile for various environments.
5With a shipping weight of 0.50 kg and dimensions of 8.00 × 4.00 × 2.00 cm, the HE-2-3/8-QS-10 is compact and easy to integrate into your pneumatic setup.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Valve function	2/2 bistable	Pneumatic connection 1	R3/8
Pneumatic connection 2	QS-10	Actuation type	Manual
Type of mounting	Optionally: Direct mounting via through-hole Direct fastening via thread	Standard nominal flow rate	760.5l/min
Nominal width	4.6mm	Operating pressure	-0.95bar 10bar
Ambient temperature	0°C 60°C	Housing material	PBT-reinforced
Operating medium	Compressed air as per ISO 8573-1:2010 [7:-:-]	Sealing principle	Soft
Mounting position	Any	Structural design	Piston gate valve
Type of control	Direct	Flow direction	Reversible
Symbol	00997328	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 4 according to ISO 14644-1	Temperature of medium	0°C 60°C
Product weight	60g	Material of screwed plug	Brass, nickel-plated
Note on materials	RoHS-compliant	Seals material	NBR
Manufacturer ID	153473
