Product Model
gru-3/8-b
Key Features

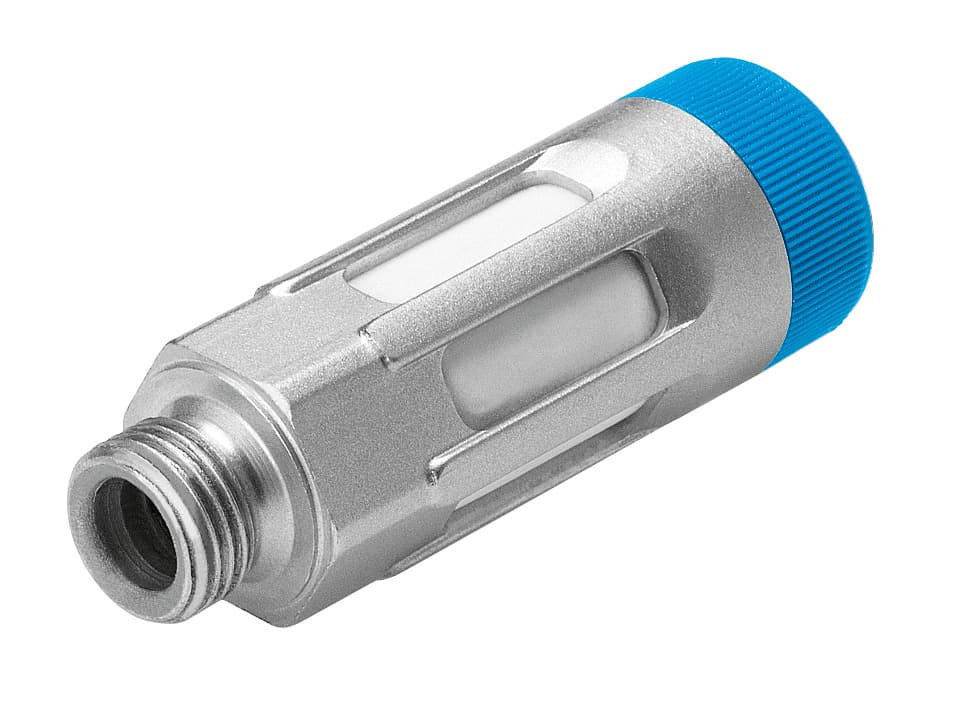

- 1The Festo GRU-3/8-B is a compact and lightweight flow control/silencer, weighing only 55 grams, making it easy to integrate into various pneumatic systems.
- 2This product features a sound pressure control function, allowing for precise regulation of airflow to minimize noise levels, ensuring a quieter operating environment.
- 3The GRU-3/8-B is designed with a G3/8 pneumatic connection, providing a secure and reliable connection point for compressed air.
- 4The valve function is adjustable using a slotted head screw, offering flexibility in setting the desired flow rate from 0 to 1700 liters per minute.
- 5The GRU-3/8-B operates within a wide temperature range of -10°C to 70°C and supports pressures up to 10 bar, ensuring reliable performance in various industrial conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Sound pressure flow control function | Selection of additional function | with muffler |
| Pneumatic connection 1 | G3/8 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard flow rate 6->0 bar | 0l/min 1700l/min |
| Ambient temperature | -10°C 70°C | Housing material | Aluminum |
| Mounting position | Any | Symbol | 00991451 |
| Operating pressure for entire temperature range | 0bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -10°C 70°C | Product weight | 55g |
| Cushioning insert material | PE | Material of screwed plug | Die-cast aluminum |
| Note on materials | RoHS-compliant | Material of adjusting screw | PA |
| Manufacturer ID | 9518 |
Specifications may be subject to change without notice
