Product Model

gro-m5-b

Manufacturer

Festo

Key Features

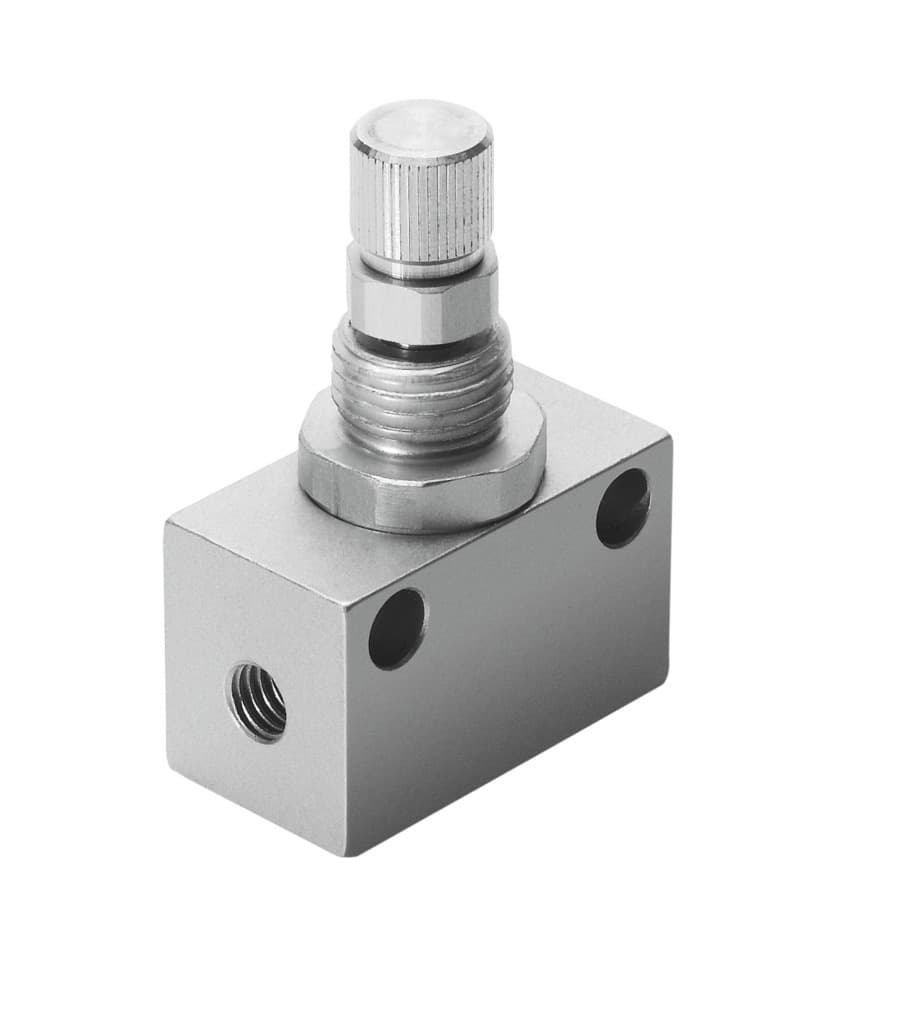

1The Festo GRO-M5-B throttle valve offers a standard nominal flow rate of 105 l/min, ensuring precise control over pneumatic systems.
2Weighing only 19g, this valve features a compact and lightweight design, ideal for installation in tight spaces.
3Equipped with a knurled screw for easy adjustment, the GRO-M5-B allows for precise tuning of flow rates to meet specific application needs.
4Built with a wrought aluminum alloy housing and high-quality materials, this valve ensures durability and reliability in various industrial environments.
5Available for either front panel mounting or in-line installation, the GRO-M5-B offers versatility in its mounting options to suit different system configurations.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Valve function	Flow control function	Pneumatic connection 1	M5
Pneumatic connection 2	M5	Adjusting element	Knurled screw
Type of mounting	Optionally: Front panel mounting With through-hole	Standard nominal flow rate in flow control direction	105l/min
Operating pressure	0bar 10bar	Ambient temperature	-20°C 60°C
Housing material	Wrought aluminum alloy	Explosion prevention and protection	Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Nominal width	2mm	Mounting position	Any
Symbol	00991454	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Temperature of medium	-20°C 60°C	Product weight	19g
Note on materials	RoHS-compliant	Seals material	NBR
Material of adjusting screw	High-alloy steel	Nut material	Wrought aluminum alloy
Sleeve material	POM	Manufacturer ID	151214

Specifications may be subject to change without notice
