Product Model
gr-m5-b
Key Features

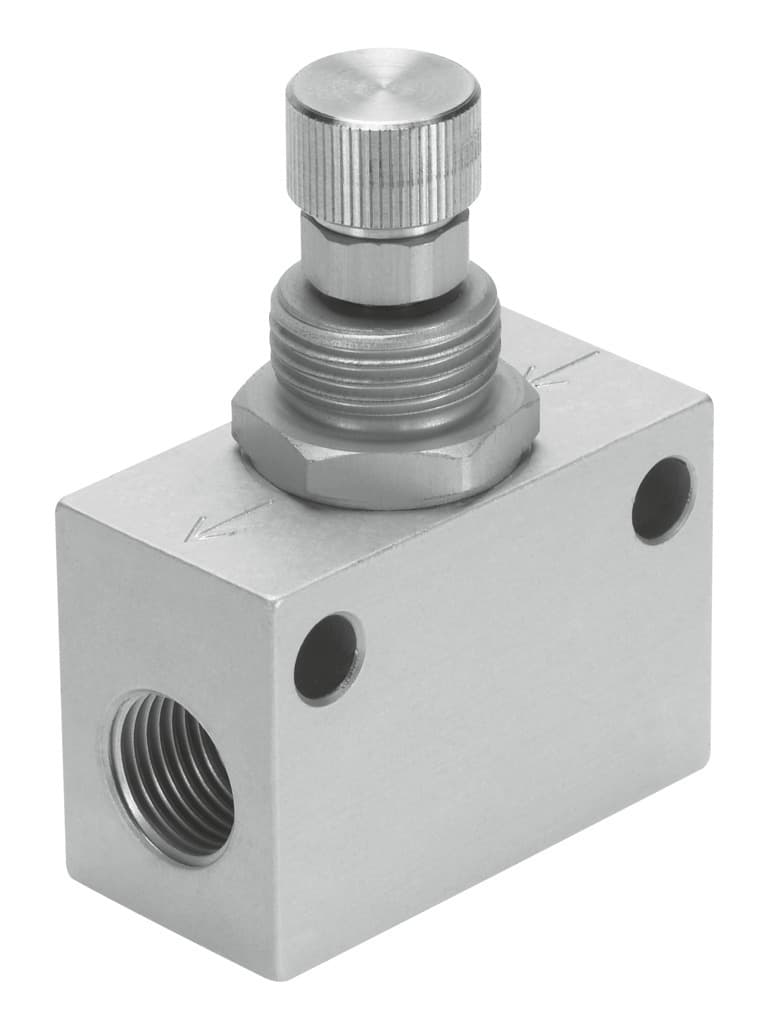

- 1The Festo GR-M5-B one-way flow control valve is made from high-quality materials, including wrought aluminum alloy for the housing and NBR seals for durability and resistance to various operating conditions.
- 2This valve features a knurled screw for easy adjustment, ensuring precise control over the flow rate in one direction. It is ideal for applications requiring reliable pneumatic flow management.
- 3The GR-M5-B operates within a wide temperature range, from -20°C to 60°C, making it suitable for various industrial environments. It also supports compressed air as per ISO 8573-1:2010 [7:4:4].
- 4With a standard nominal flow rate of 115 l/min in the flow control direction and 130-137 l/min in the non-return direction, this valve provides efficient pneumatic control for your applications.
- 5The Festo GR-M5-B is part of the GR series, known for its reliability and precision. It is designed to meet the needs of industries requiring high-performance pneumatic valves, ensuring smooth and controlled operations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Flow control non-return function | Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 | Adjusting element | Knurled screw |
| Type of mounting | Optionally: Front panel mounting With through-hole | Standard nominal flow rate in flow control direction | 115l/min |
| Standard nominal flow rate in non-return direction | 130l/min 137l/min | Operating pressure | 0.5bar 10bar |
| Ambient temperature | -20°C 60°C | Housing material | Wrought aluminum alloy |
| Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Mounting position | Any |
| Symbol | 00991453 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Temperature of medium | -20°C 60°C | Nominal width | 2mm |
| Product weight | 19g | Note on materials | RoHS-compliant |
| Seals material | NBR | Sleeve material | POM |
| Material of adjusting screw | High-alloy steel | Nut material | Wrought aluminum alloy |
| Manufacturer ID | 151213 |
Specifications may be subject to change without notice
