Product Model

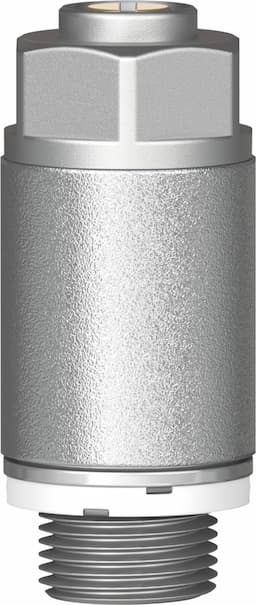

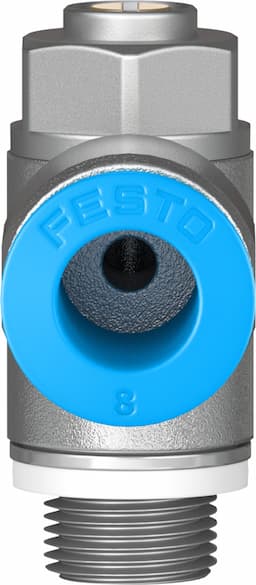

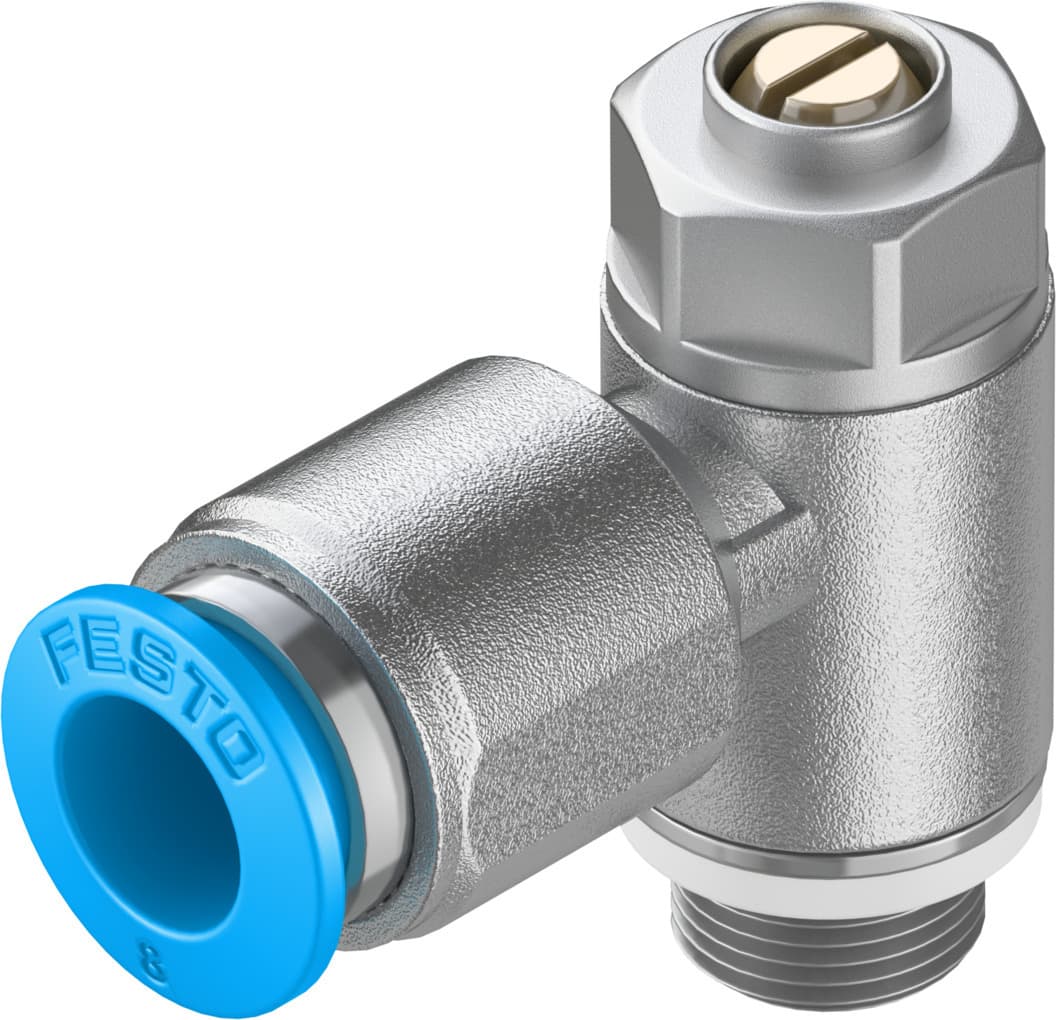

grlz-1/8-qs-8-d
Key Features
- 1The GRLZ-1/8-QS-8-D one-way flow control valve from Festo ensures precise control of compressed air flow, making it ideal for various pneumatic applications.
- 2This valve supports multiple pneumatic connections, including QS-8 and G1/8, providing flexibility in system design and integration.
- 3With an operating pressure range of 0.2 to 10 bar, the GRLZ-1/8-QS-8-D valve can handle a variety of pneumatic system requirements.
- 4Made from durable materials like wrought aluminum alloy and NBR seals, this valve is designed for long-lasting performance in demanding environments.
- 5Featuring a slotted head screw adjustment component and screw-in mounting via male thread, the GRLZ-1/8-QS-8-D valve is easy to install and adjust.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Supply air flow control non-return function | Pneumatic connection 1 | QS-8 |
| Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 215l/min |
| Standard nominal flow rate in non-return direction | 175l/min 250l/min | Ambient temperature | -10°C 60°C |
| Maritime classification | See certificate | Mounting position | Any |
| Symbol | 00991453 | Operating pressure for entire temperature range | 0.2bar 10bar |
| Standard flow rate in flow control direction 6 -> 0 bar | 370l/min | Standard flow rate in non-return direction at 6 -> 0 bar | 390l/min 470l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | -10°C 60°C | Nominal tightening torque | 3Nm |
| Tolerance for nominal tightening torque | ± 10% | Product weight | 22g |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Seals material | NBR | Releasing ring material | POM |
| Material of adjusting screw | Brass | Swivel joint material | Die-cast zinc Chromated |
| Manufacturer ID | 193159 |
Specifications may be subject to change without notice
