Product Model

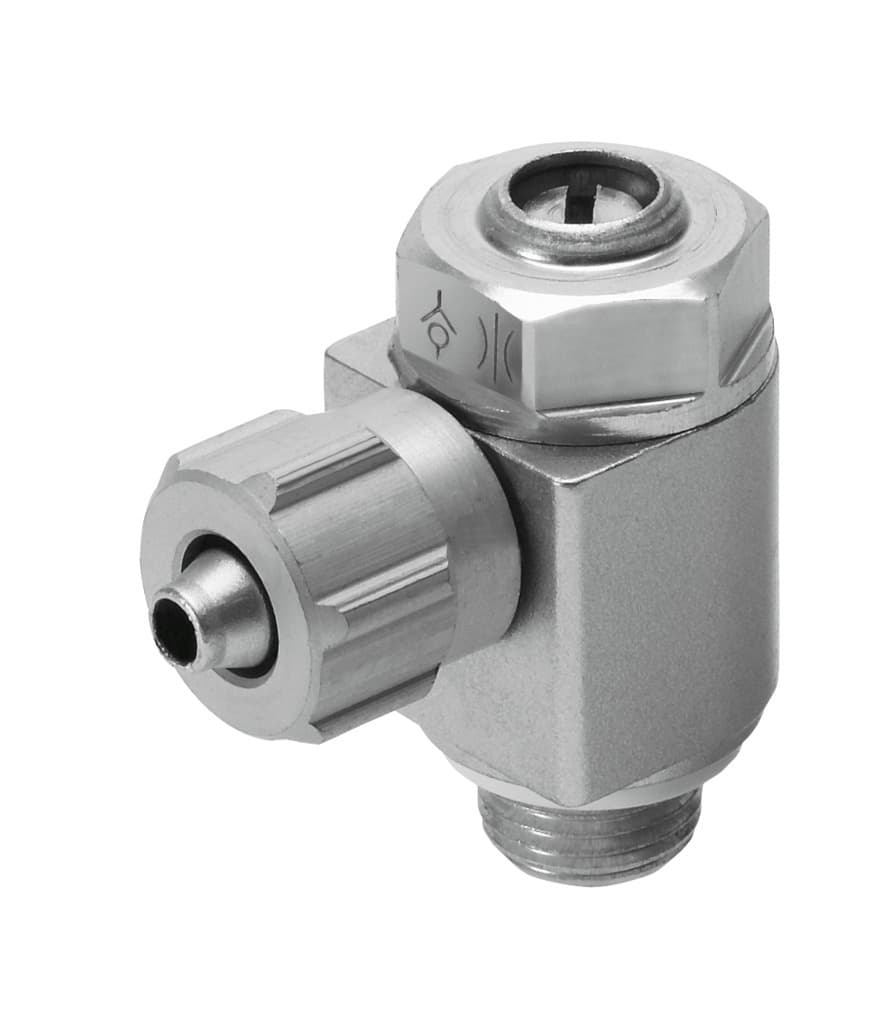

grla-1/8-pk-3-b
Key Features
- 1The Festo GRLA-1/8-PK-3-B one-way flow control valve ensures precise pneumatic control, ideal for various industrial automation applications.
- 2Made with high-quality materials, including wrought aluminum alloy for the threaded plug and NBR seals for reliable performance.
- 3This valve features a compact design with a lightweight construction, weighing only 22 grams, making it easy to integrate into complex systems.
- 4The GRLA series is known for its durability and long service life, ensuring consistent performance in demanding industrial environments.
- 5The Festo GRLA-1/8-PK-3-B valve is part of Festo's extensive range of pneumatic components, offering everything from single products to complete solutions for factory automation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Valve function | Exhaust air flow control non-return function | Pneumatic connection 1 | PK-3 with union nut |
| Pneumatic connection 2 | G1/8 | Adjusting element | Slotted screw |
| Type of mounting | Screw-in | Standard nominal flow rate in flow control direction | 110l/min |
| Standard nominal flow rate in non-return direction | 100l/min 110l/min | Ambient temperature | -10°C 60°C |
| Maritime classification | See certificate | Explosion prevention and protection | Observe the information on the certificate Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
| Mounting position | Any | Symbol | 00991452 |
| Operating pressure for entire temperature range | 0.3bar 10bar | Standard flow rate in flow control direction 6 -> 0 bar | 162l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 145l/min 165l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom class | Class 4 according to ISO 14644-1 | Temperature of medium | -10°C 60°C |
| Max. tightening torque | 6Nm | Product weight | 22g |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Seals material | NBR | Material of adjusting screw | Brass |
| Swivel joint material | Die-cast zinc | Manufacturer ID | 151166 |
Specifications may be subject to change without notice
