Product Model

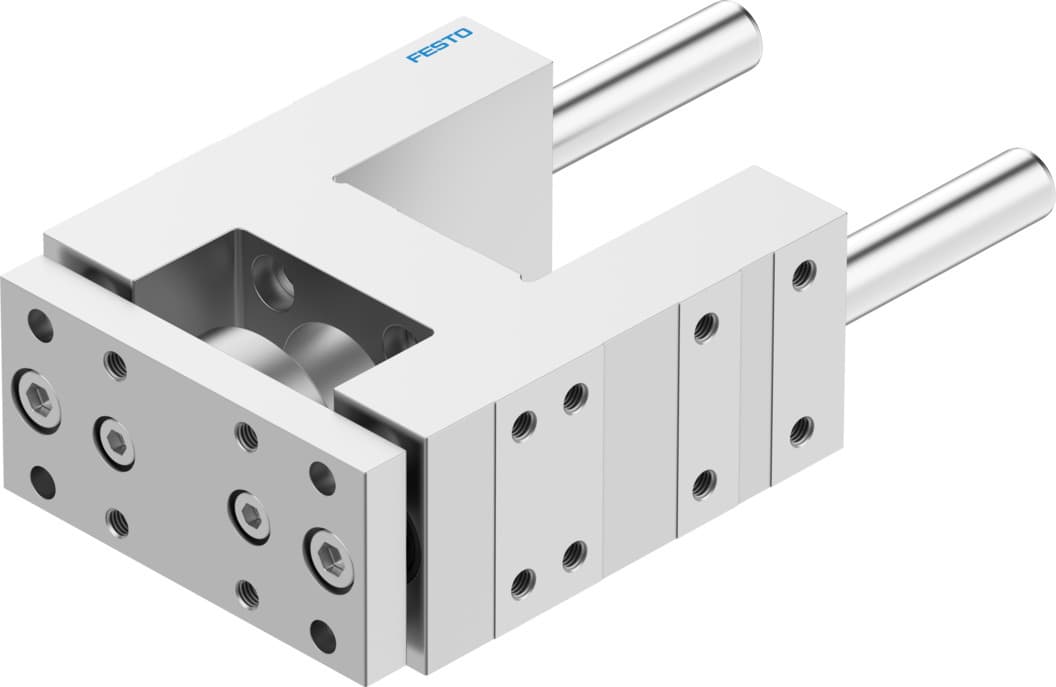

feng-50-80-gf
Key Features
- 1The FENG-50-80-GF linear guide is engineered to provide precise movement and minimal friction, ensuring consistent performance in pneumatic cylinder applications.
- 2Designed to operate within an ambient temperature range of -20°C to +80°C, making it suitable for various industrial environments.
- 3Weighing approximately 4190 grams with a basic weight, this guide unit offers a balance of lightness and robustness for efficient operation.
- 4Featuring a female thread mounting system, the FENG-50-80-GF is easy to integrate into your pneumatic system, ensuring quick setup and minimal downtime.
- 5Constructed with high-quality materials, this linear guide offers enhanced durability and resistance to wear and tear, extending the lifespan of your pneumatic system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 80mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 50N | Moving mass | 1798g |
| Product weight | 4574g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204077 |
Specifications may be subject to change without notice
