Product Model

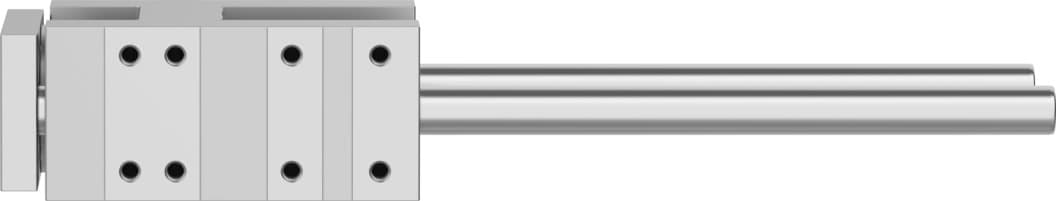

feng-50-250-gf
Key Features
- 1The Festo FENG-50-250-GF guide unit features a recirculating ball bearing guide, ensuring high precision and minimal backlash, making it ideal for demanding applications.
- 2With a piston diameter of 50 mm and a stroke length of 250 mm, this guide unit offers a versatile range suitable for various automation tasks, from small to medium-sized systems.
- 3The FENG-50-250-GF is designed for standards-based cylinders, providing a mounting kit necessary for sensing end positions, ensuring accurate positioning and control.
- 4This guide unit supports loads with a displacement force of 40 N, making it suitable for applications requiring moderate to high load capacities.
- 5The FENG-50-250-GF is part of the Festo Core Range, known for its high-quality components and quick delivery, ensuring you get the best value for your automation tasks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 250mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 50N | Moving mass | 2614g |
| Product weight | 5390g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204080 |
Specifications may be subject to change without notice
