Product Model

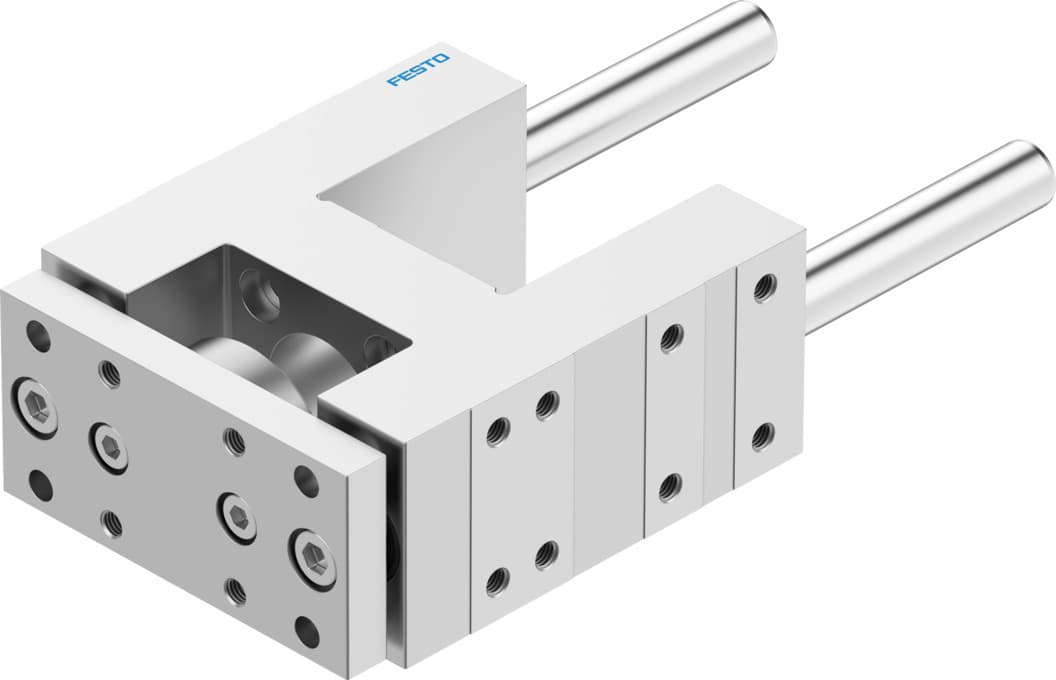

feng-50-100-gf
Key Features
- 1High Precision Guiding: The FENG-50-100-GF guide unit ensures precise guiding in transfer or grab mechanisms, preventing piston rod rotation and handling high load torques.
- 2Versatile Usage: Suitable for various applications such as print, semiconductor, automation, control, and robot systems, making it a versatile addition to your setup.
- 3Customization Available: The guide unit can be customized to meet specific needs, offering flexibility in its application and integration.
- 4Material Quality: Constructed from high-quality stainless steel, ensuring durability and resistance to wear and tear.
- 5Compatibility with Standards: Compatible with ISO 6432 or ISO 15552 standard cylinders, ensuring seamless integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 50 | Stroke | 100mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 50N | Moving mass | 1894g |
| Product weight | 4670g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204078 |
Specifications may be subject to change without notice
