Product Model

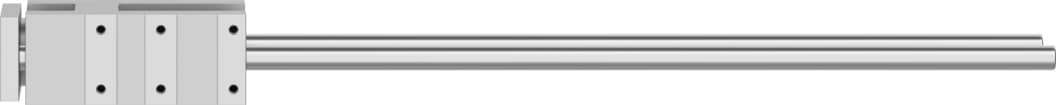

feng-40-500-gf
Key Features
- 1The Festo FENG-40-500-GF guide unit offers a stroke length of 10 mm to 500 mm, making it versatile for various industrial applications.
- 2Equipped with a plain-bearing guide, this unit provides smooth and precise movement, ensuring high accuracy in operations.
- 3The guide unit is designed for explosion protection in zones 1, 2, and 21 (ATEX), ensuring safety in hazardous environments.
- 4It features a basic weight of 2480 g and an additional weight of 31 g per 10 mm stroke, providing a balanced and stable performance.
- 5The FENG-40-500-GF is constructed from RoHS-compliant materials, including high-alloy steel for the guide component and anodized wrought aluminum alloy for the housing, ensuring durability and compliance with environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 500mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 2332g |
| Product weight | 4030g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204075 |
Specifications may be subject to change without notice
