Product Model
feng-32-50-gf
Key Features

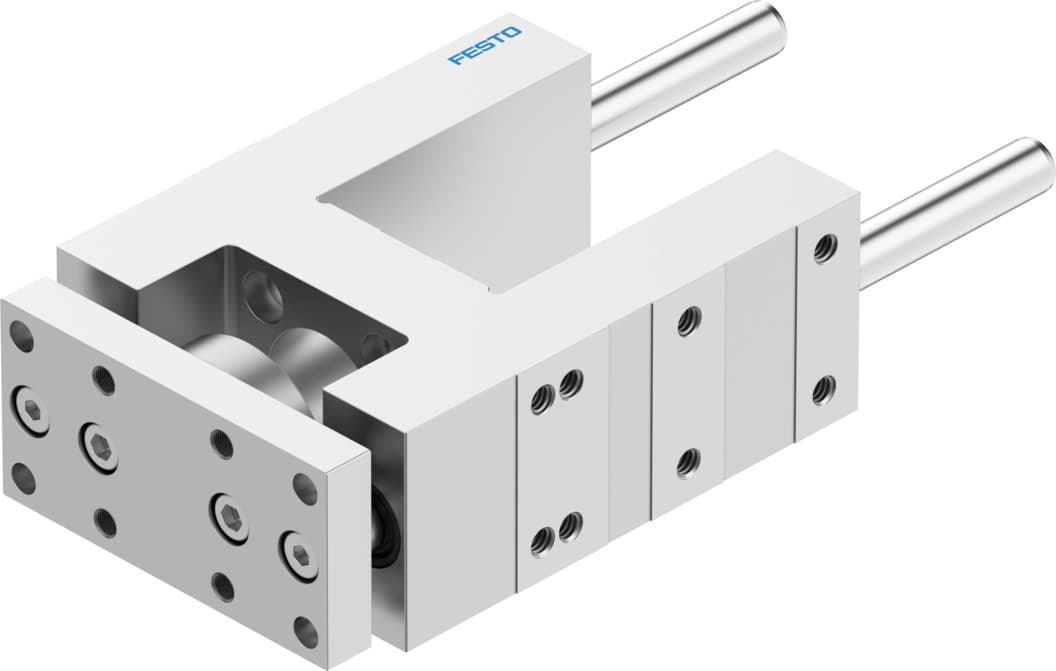

- 1The Festo FENG-32-50-GF guide unit features a plain-bearing guide, ensuring smooth and precise movement in pneumatic systems.
- 2Available with strokes ranging from 10 mm to 500 mm, this guide unit is versatile and adaptable to various application requirements.
- 3Constructed with high-alloy steel for the guide component and anodized wrought aluminum alloy for the housing, providing durability and resistance to wear.
- 4Designed with explosion protection in mind, making it suitable for hazardous environments where safety is paramount.
- 5Meets LABS (PWIS) conformity and VDMA24364-B2-L standards, ensuring compliance with industry regulations and quality standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 50mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 563g |
| Product weight | 1655g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204059 |
Specifications may be subject to change without notice
