Product Model

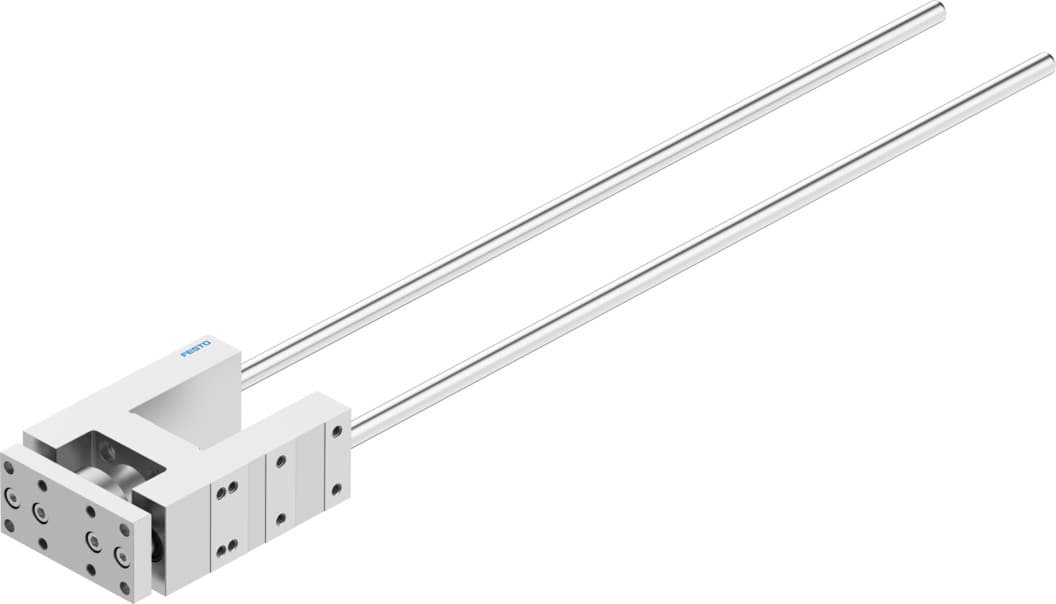

feng-32-500-gf
Key Features
- 1Precision Guide Unit: The FENG-32-500-GF features a plain-bearing guide, ensuring smooth and precise movement in pneumatic systems.
- 2Robust Construction: Built with high-alloy steel for the guide component and anodized wrought aluminum alloy for the housing, this guide unit offers robust construction.
- 3Wide Temperature Range: Operates within an ambient temperature range of -20 °C to 80 °C, making it suitable for various industrial environments.
- 4Versatile Mounting Options: Can be mounted via female thread, providing flexibility in installation.
- 5Compliant with Industry Standards: Meets LABS (PWIS) conformity and VDMA24364-B2-L standards, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 500mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 1328g |
| Product weight | 2420g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204068 |
Specifications may be subject to change without notice
