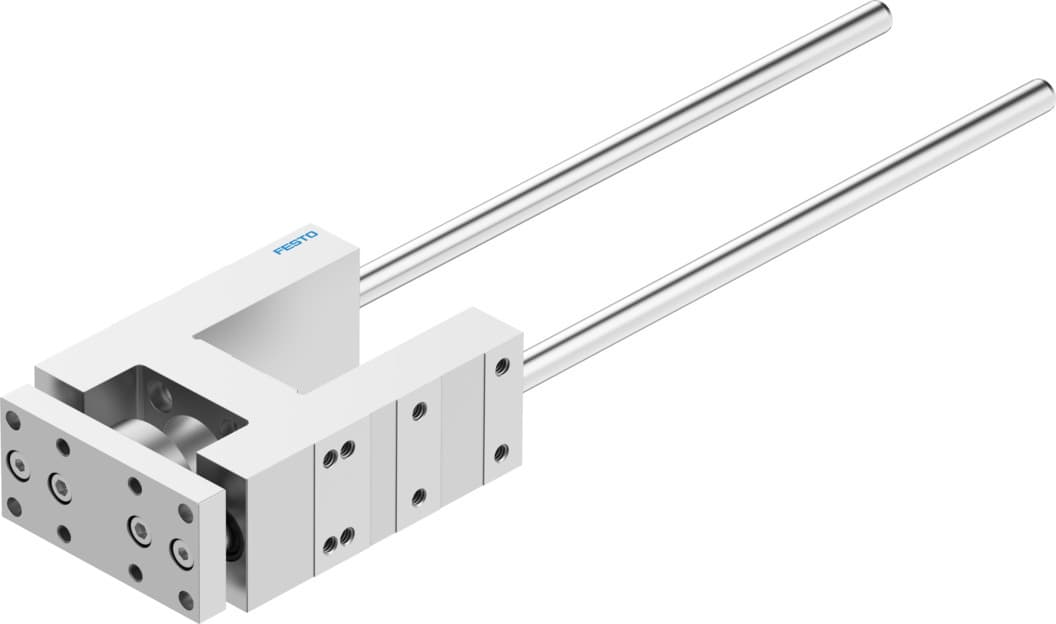

Product Model
feng-32-250-gf
Key Features
- 1The FENG-32-250-GF guide unit offers precise linear motion with a stroke of 250 mm, ensuring high accuracy in various applications.
- 2Made from high-alloy steel for the guide component and anodized wrought aluminum alloy for the housing, this guide unit is built to withstand demanding conditions.
- 3Available for mounting via female thread, providing flexibility in installation and integration with different systems.
- 4Designed for explosion protection in zones 1, 2, 21, and 22, making it suitable for hazardous environments.
- 5With a displacement force of 30 N and an ambient temperature range of -20 °C to 80 °C, this guide unit ensures reliable performance in a variety of settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 250mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 903g |
| Product weight | 1995g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204065 |
Specifications may be subject to change without notice
