Product Model

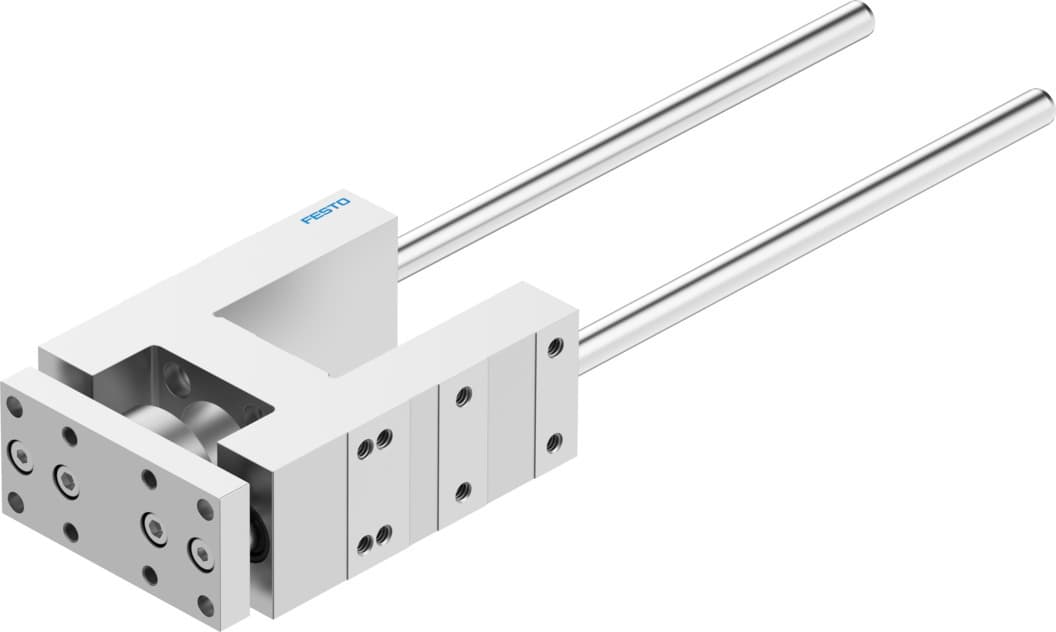

feng-32-200-gf
Key Features
- 1The FENG-32-200-GF guide unit features a recirculating ball bearing guide, ensuring smooth and precise movement in pneumatic systems.
- 2Constructed with tempered steel for the guide component and anodized wrought aluminum alloy for the housing, this guide unit offers robust durability.
- 3Designed with explosion protection in mind, the FENG-32-200-GF meets LABS (PWIS) conformity and VDMA24364-B2-L standards, ensuring safe operation in hazardous environments.
- 4Available with an optional mounting position via female thread, the FENG-32-200-GF provides flexibility in installation and integration with various pneumatic systems.
- 5Capable of handling maximum forces of 750 N and maximum moments of 28 Nm, this guide unit is ideal for applications requiring high performance and precision.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 32 | Stroke | 200mm |
| Mounting position | Any | Guide | Sliding guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Displacement force | 30N | Moving mass | 818g |
| Product weight | 1910g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | High-alloy steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204064 |
Specifications may be subject to change without notice
