Product Model

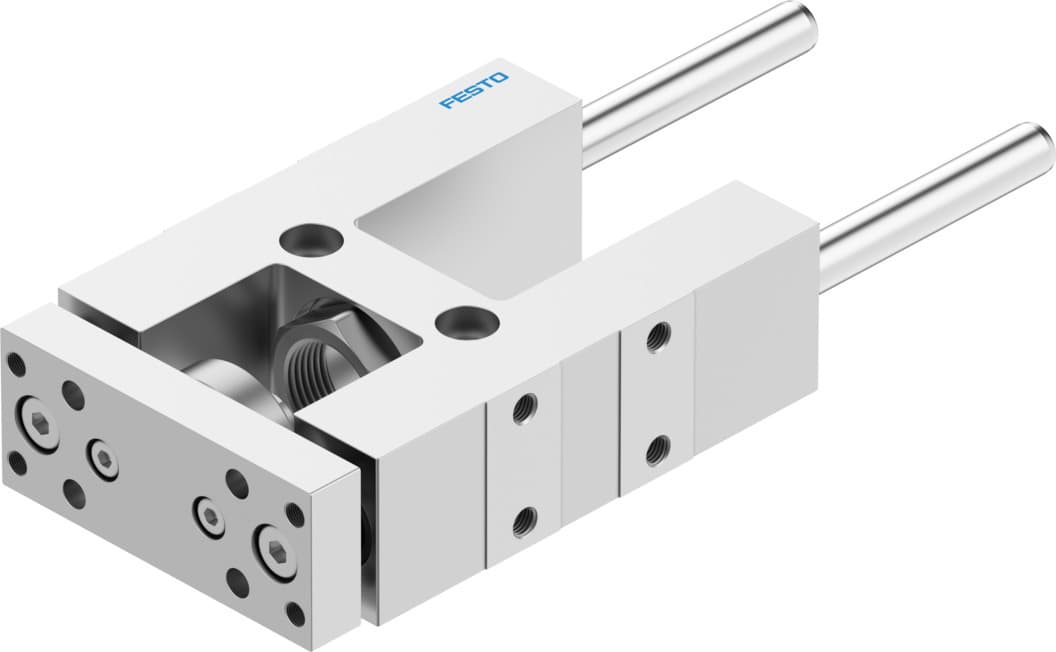

fen-25-50-kf
Key Features
- 1The FEN-25-50-KF guide unit features a recirculating ball bearing guide, ensuring smooth and precise movement in pneumatic systems.
- 2With a stroke range of 50 mm, this guide unit offers flexibility for various applications, from small to medium-sized pneumatic actuators.
- 3Built with tempered steel, the guide unit provides durability and resistance to wear and tear, ensuring long-lasting performance.
- 4Designed with explosion protection in mind, the FEN-25-50-KF is ideal for applications in hazardous environments, meeting VDMA24364-B2-L standards.
- 5Featuring a female thread for mounting, the guide unit is easy to integrate into your pneumatic system, reducing installation time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 25 | Stroke | 50mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 520N | Max. force Fy static | 830N |
| Max. force Fz | 520N | Max. force Fz static | 830N |
| Max. torque Mx | 15Nm | Max. static moment Mx | 24Nm |
| Max. torque My | 20Nm | Max. static moment My | 31Nm |
| Max. torque Mz | 20Nm | Max. static moment Mz | 31Nm |
| Displacement force | 15N | Moving mass | 329g |
| Product weight | 873g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204034 |
Specifications may be subject to change without notice
