Product Model

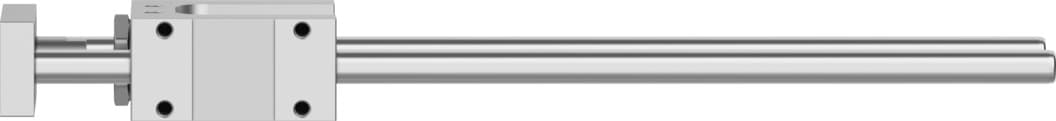

fen-12/16-200-kf
Key Features
- 1The Fen-12/16-200-KF is a high-quality guide unit designed for precise and reliable operation in various industrial automation applications.
- 2This component offers standardized dimensions and mounting interfaces, ensuring easy integration into your existing systems.
- 3The Fen-12/16-200-KF is part of Festo's extensive range of pneumatic and electric components, providing a comprehensive solution for your automation needs.
- 4With its robust construction and durable materials, this guide unit ensures long-lasting performance and minimal maintenance requirements.
- 5The Fen-12/16-200-KF supports standardized IO-Link technology, facilitating simple and economical communication with sensors and actuators.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 12/16 | Stroke | 200mm |
| Mounting position | Any | Guide | Recirculating ball bearing guide |
| Structural design | Guide | Explosion prevention and protection | Observe the information on the certificate |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Max. force Fy | 520N | Max. force Fy static | 830N |
| Max. force Fz | 520N | Max. force Fz static | 830N |
| Max. torque Mx | 12Nm | Max. static moment Mx | 20Nm |
| Max. torque My | 7Nm | Max. static moment My | 12Nm |
| Max. torque Mz | 7Nm | Max. static moment Mz | 12Nm |
| Displacement force | 15N | Moving mass | 401g |
| Product weight | 669g | Type of mounting | With internal thread |
| Note on materials | RoHS-compliant | Material of guide component | Tempered steel |
| Housing material | Wrought aluminum alloy, anodized | Material of yoke plate | Wrought aluminum alloy, anodized |
| Manufacturer ID | 8204030 |
Specifications may be subject to change without notice
