Product Model

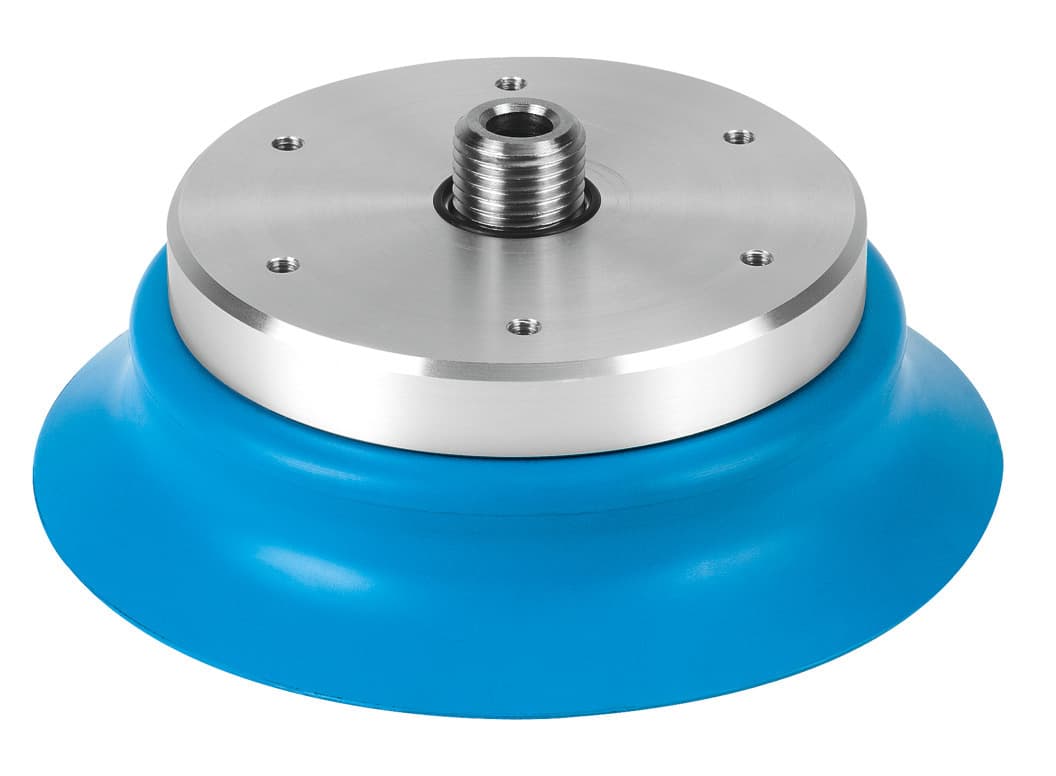

ess-80-eu
Key Features
- 1High holding force of 275N for secure grip.
- 2Durable PUR material for long-lasting performance.
- 3Ideal for use in various industrial applications.
- 4Easy mounting via vacuum port with M10 connection.
- 5Compliant with ISO 8573-1:2010 and RoHS standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 160mm | Nominal width | 6mm |
| Suction cup diameter | 80mm | Suction cup volume | 51.61cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 60°C |
| Holding force at nominal operating pressure | 275N | Lateral force at nominal operating pressure | 136.5N |
| Product weight | 141g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Blue |
| Shore hardness | 60 +/- 5 | Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | PUR |
| Manufacturer ID | 189359 |
Specifications may be subject to change without notice
