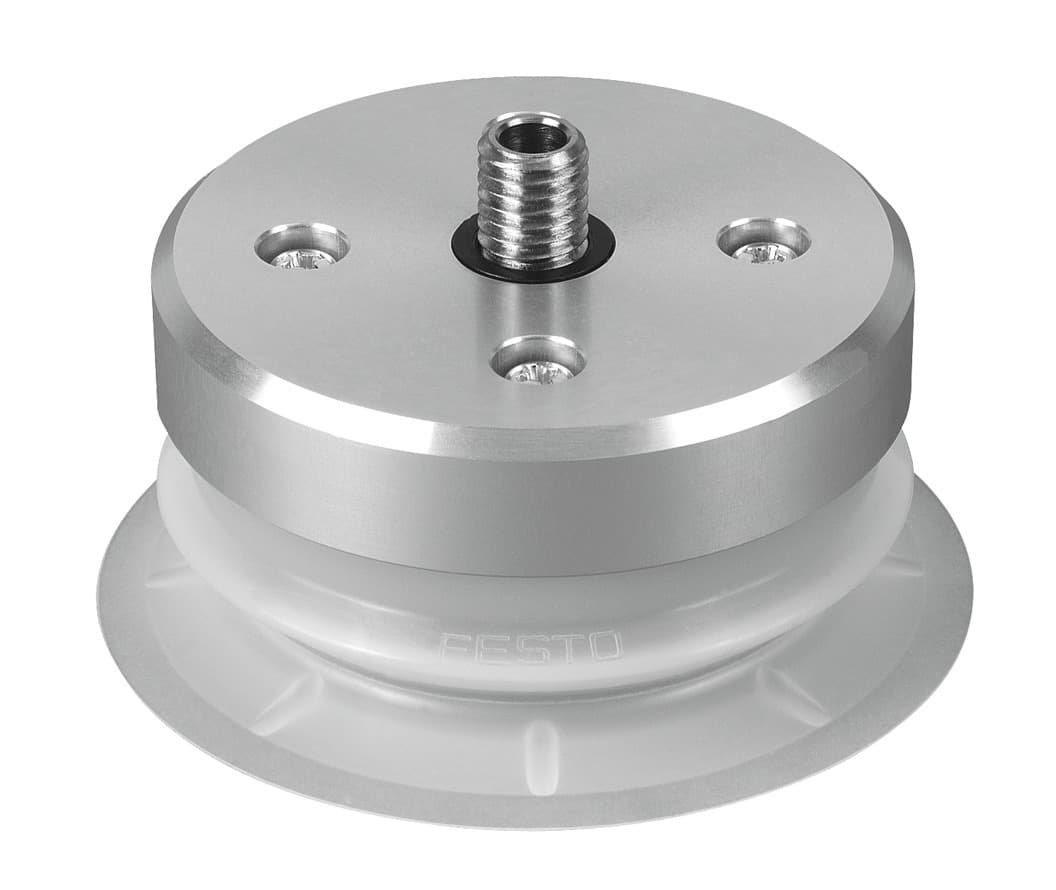

Product Model
ess-80-bs
Key Features
- 1Designed to operate in extreme temperatures from -30°C to 180°C.
- 2Made with POM and nickel-plated steel for long-lasting use.
- 3Mounts via vacuum port with M10 connection.
- 4Suitable for various applications, including food handling and industrial processes.
- 5Provides a holding force of 213.6 N at nominal operating pressure.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 10mm | Min. workpiece radius | 430mm |
| Nominal width | 6mm | Suction cup diameter | 80mm |
| Suction cup volume | 63.9cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 5 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 213.6N |
| Lateral force at nominal operating pressure | 93N | Product weight | 139g |
| Type of mounting | Via vacuum connection | Vacuum connection | M10 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | POM Steel, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189396 |
