Product Model

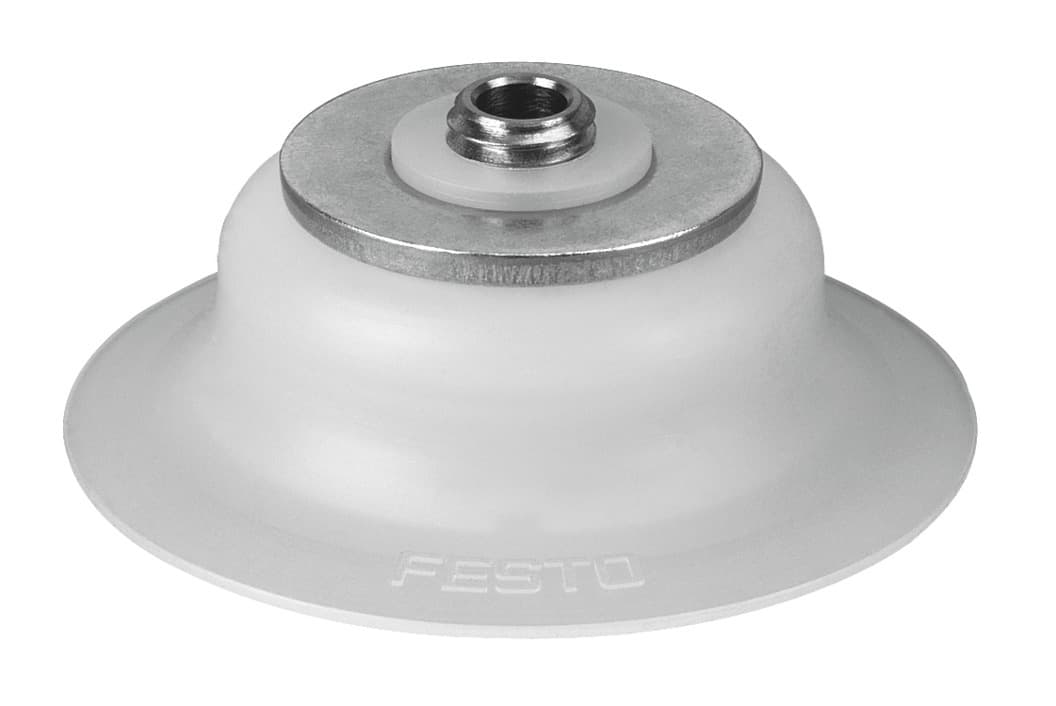

ess-60-ss
Key Features
- 1High-Quality Vacuum Connection: The Festo ESS-60-SS features a reliable M10 vacuum connection for consistent performance.
- 2Easy Interchangeability: Designed for easy installation and replacement, minimizing downtime in industrial settings.
- 3Durable Construction: Built with robust materials, ensuring long-lasting use in demanding environments.
- 4Versatile Application: Suitable for a wide range of industrial applications, including automation and manufacturing.
- 5Precise Suction Control: Achieve precise control over suction power with this precision-engineered suction cup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 350mm | Nominal width | 6mm |
| Suction cup diameter | 60mm | Suction cup volume | 3.953cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
| Holding force at nominal operating pressure | 166.1N | Lateral force at nominal operating pressure | 85N |
| Product weight | 49g | Type of mounting | Via vacuum connection |
| Vacuum connection | M10 | Color | Transparent |
| Shore hardness | 50 +/- 5 | Material of screwed plug | Wrought aluminum alloy, nickel-plated Steel, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 189316 |
Specifications may be subject to change without notice
