Product Model
ess-60-gt-g1/4
Key Features

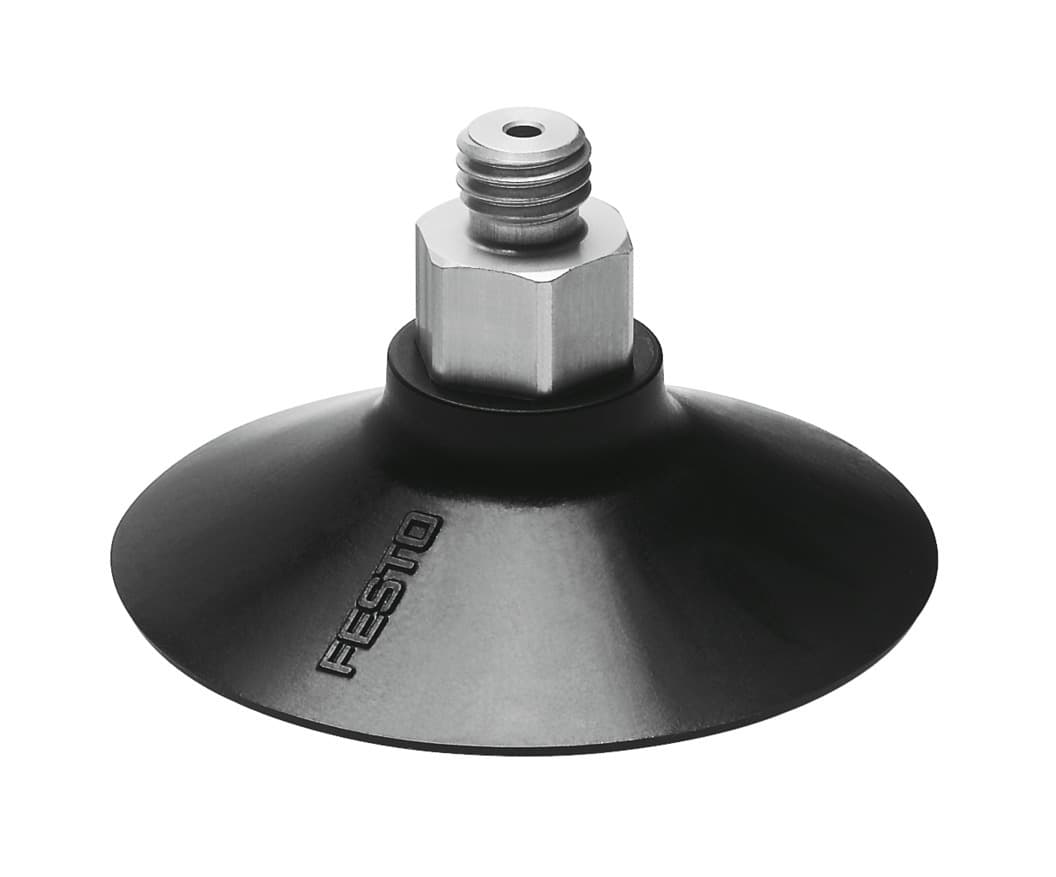

- 1The Festo ESS-60-GT-G1/4 vacuum suction cup offers a 60mm diameter and a round, deep shape, ensuring optimal grip and versatility in various applications.
- 2With a nominal operating pressure of -0.7 bar and an operating pressure range of -0.95 bar to 0 bar, this suction cup is designed to handle a wide range of vacuum conditions.
- 3The ESS-60-GT-G1/4 features a height compensator of 6mm, allowing for precise positioning and ensuring consistent performance even with varying workpiece heights.
- 4This suction cup is made from Vulkollan material, known for its high-performance elastomer properties, providing excellent durability and resistance to wear.
- 5With a holding force of 134N at nominal operating pressure and a lateral force of 37N, the Festo ESS-60-GT-G1/4 ensures reliable and secure gripping of workpieces, making it ideal for various industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Min. workpiece radius | 75mm |
| Nominal width | 2.5mm | Suction cup diameter | 60mm |
| Suction cup volume | 11.3cm3 | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Holding force at nominal operating pressure | 134N | Lateral force at nominal operating pressure | 37N |
| Product weight | 21g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525982 |
Specifications may be subject to change without notice
