Product Model

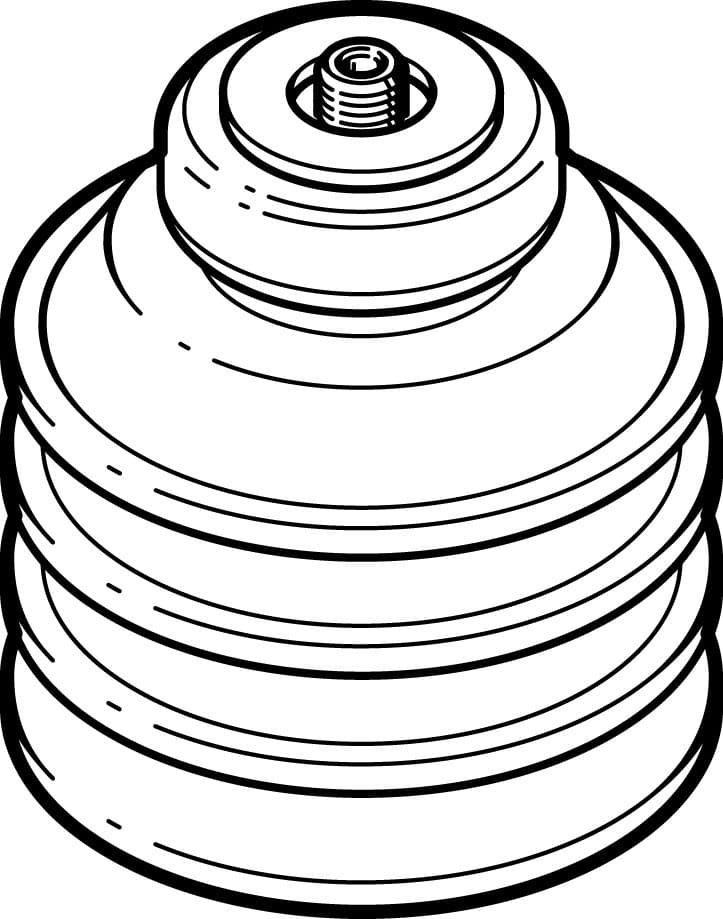

ess-50-cs
Key Features
- 150mm diameter, round bellows shape with 3.5 convolutions for efficient vacuum suction.
- 2Standard Silicone material ensures durability and resistance to corrosion.
- 3Threaded connection M6 for easy mounting and secure attachment.
- 417.5MM height compensator for precise suction cup positioning.
- 563.4N holding force at nominal operating pressure for reliable grip and stability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 17.5mm | Min. workpiece radius | 180mm |
| Nominal width | 3mm | Suction cup diameter | 50mm |
| Suction cup volume | 38.92cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 63.4N |
| Lateral force at nominal operating pressure | 45.5N | Product weight | 32.1g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189407 |
Specifications may be subject to change without notice
