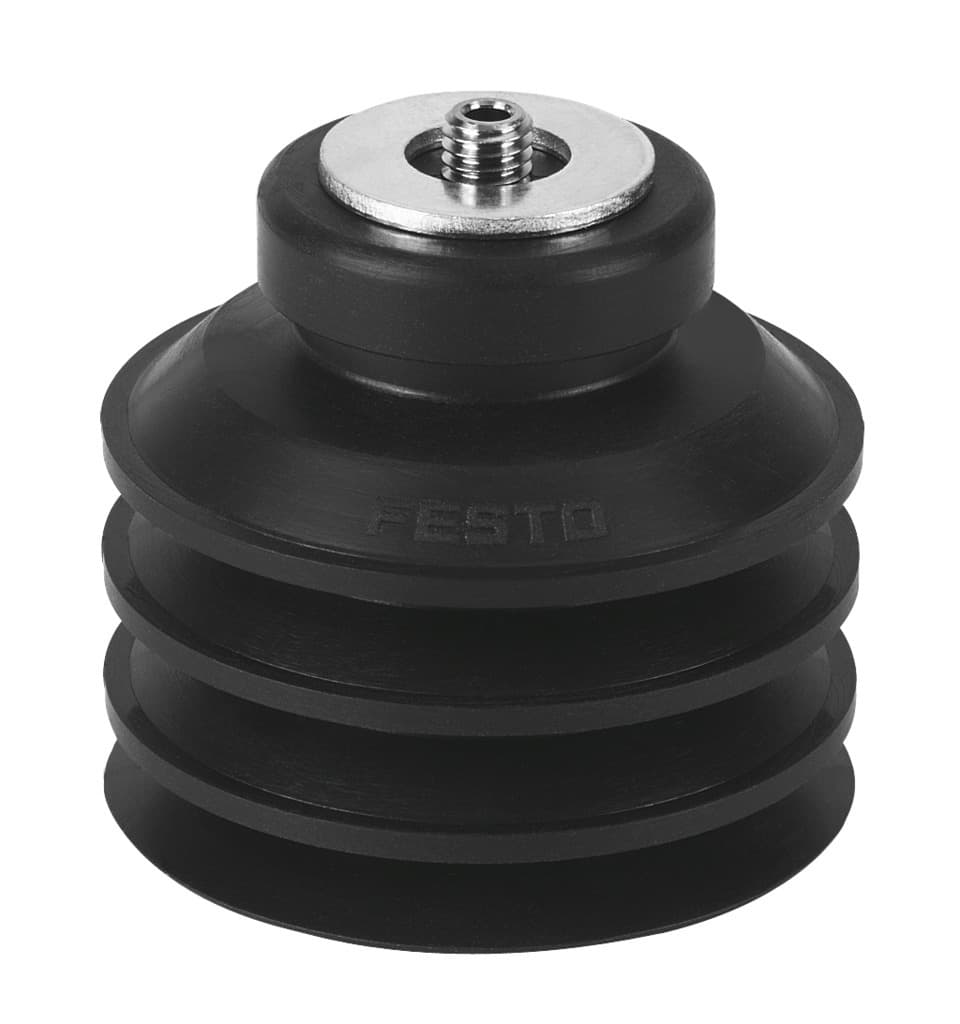

Product Model
ess-50-cn
Key Features
- 1High-Performance Suction: The Festo ESS-50-CN vacuum suction cup offers a 63.4N holding force at nominal operating pressure.
- 2Versatile Design: Features a round, bellows design with 3.5 convolutions for versatile use in various industrial applications.
- 3Durable Materials: Constructed with standard Nitrile rubber material and nickel-plated wrought aluminum alloy for durability.
- 4Easy Installation: Equipped with a threaded connection M6 for easy mounting and installation.
- 5Compliant with Standards: Meets VDMA24364-A1-L lABS (PWIS) conformity and ISO 8573-1:2010 operating medium standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 17.5mm | Min. workpiece radius | 180mm |
| Nominal width | 3mm | Suction cup diameter | 50mm |
| Suction cup volume | 38.92cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 63.4N |
| Lateral force at nominal operating pressure | 49N | Product weight | 32.1g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Black | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 189406 |
Specifications may be subject to change without notice
