Product Model

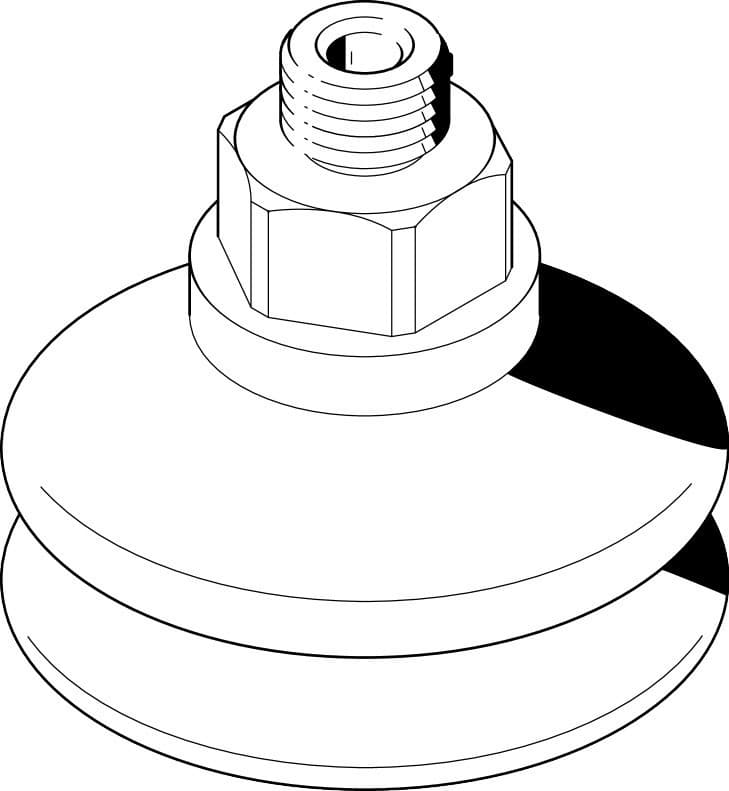

ess-50-bt-m10
Key Features
- 1The ESS-50-BT-M10 comes with a 10 mm height compensator, ensuring precise positioning and stability in various workpiece configurations.
- 2Made from Vulkollan material, this suction cup offers excellent durability and resistance to moderate corrosion stress, making it suitable for demanding applications.
- 3With a nominal holding force of 100 N at the operating pressure of -0.7 bar, the ESS-50-BT-M10 provides strong grip and reliable performance.
- 4The suction cup can be mounted via the vacuum port, offering flexibility in installation and integration with various pneumatic systems.
- 5The product meets ISO 8573-1:2010 for atmospheric air quality and is RoHS-compliant, ensuring it meets stringent environmental and safety regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10mm | Min. workpiece radius | 40mm |
| Nominal width | 2.5mm | Suction cup diameter | 50mm |
| Suction cup volume | 17.6cm3 | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 5 |
| Suction cup shape | Round bellows, 1.5 convolutions | Operating pressure | -0.95bar 0bar |
| Nominal operating pressure | -0.7bar | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 80°C | Holding force at nominal operating pressure | 100N |
| Lateral force at nominal operating pressure | 39N | Product weight | 25g |
| Type of mounting | Via vacuum connection | Vacuum connection | M10 |
| Color | Reddish brown | Shore hardness | 72 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy | Note on materials | RoHS-compliant |
| Suction cup material | Vulkollan? | Manufacturer ID | 525994 |
Specifications may be subject to change without notice
