Product Model

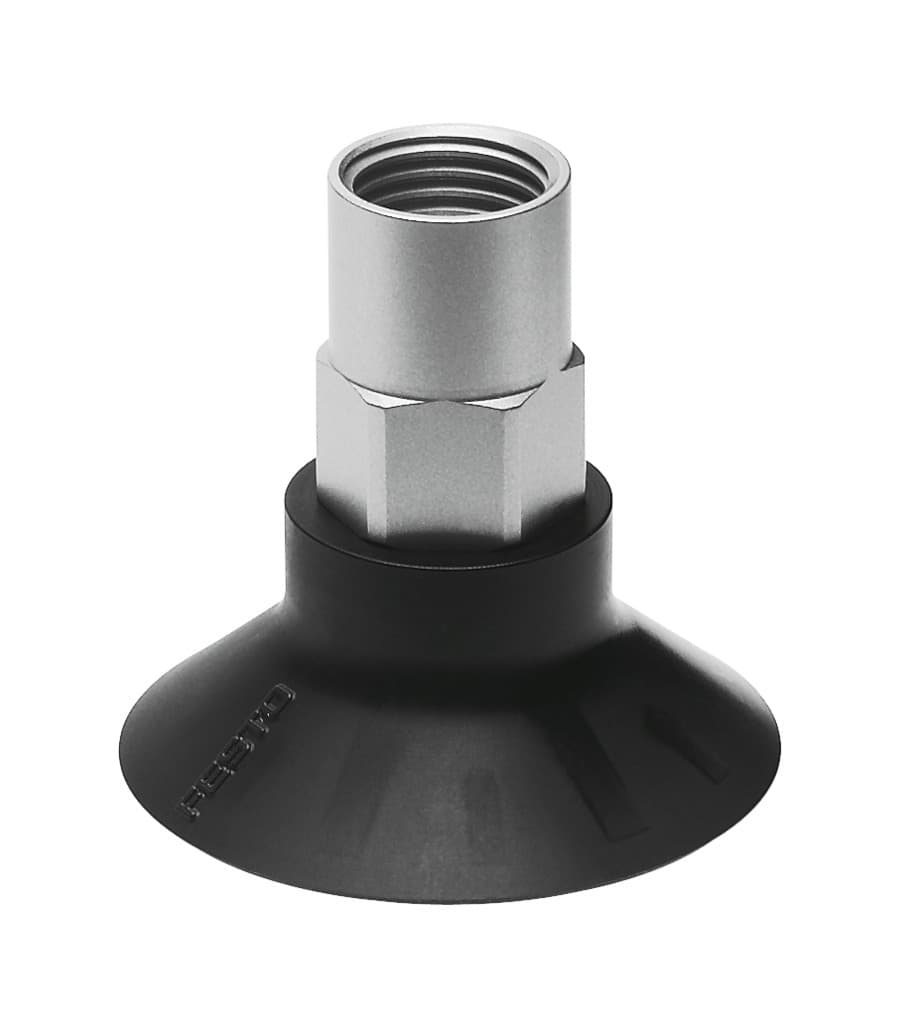

ess-40-gt-g1/4-i
Key Features
- 1High-Performance Vacuum Application: The Festo ESS-40-GT-G1/4-I suction cup is engineered for demanding vacuum applications, ensuring reliable and consistent performance.
- 20mm Suction Cup Diameter: With a 40mm diameter, this suction cup offers a large surface area for effective gripping and holding forces of up to 64N.
- 3/4" BSPP Thread: Equipped with a 1/4" BSPP female threaded pneumatic port, it seamlessly integrates into various pneumatic systems.
- 4Temperature Range: Operating within a temperature range of -10°C to 80°C, it can handle diverse environmental conditions.
- 5Polyurethane Material: Constructed from high-quality polyurethane, the suction cup provides excellent durability and resistance to wear and tear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 5.5mm | Min. workpiece radius | 35mm |
| Nominal width | 2.5mm | Suction cup diameter | 40mm |
| Suction cup volume | 5.4cm3 | Mounting position | Any |
| Symbol | 00991485 | Suction cup shape | Round, deep |
| Operating pressure | -0.95bar 0bar | Nominal operating pressure | -0.7bar |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 80°C |
| Holding force at nominal operating pressure | 64N | Lateral force at nominal operating pressure | 20N |
| Product weight | 14.5g | Type of mounting | Via vacuum connection |
| Vacuum connection | G1/4 | Color | Reddish brown |
| Shore hardness | 72 +/- 5 | Material of screwed plug | Wrought aluminum alloy |
| Note on materials | RoHS-compliant | Suction cup material | Vulkollan? |
| Manufacturer ID | 525974 |
Specifications may be subject to change without notice
