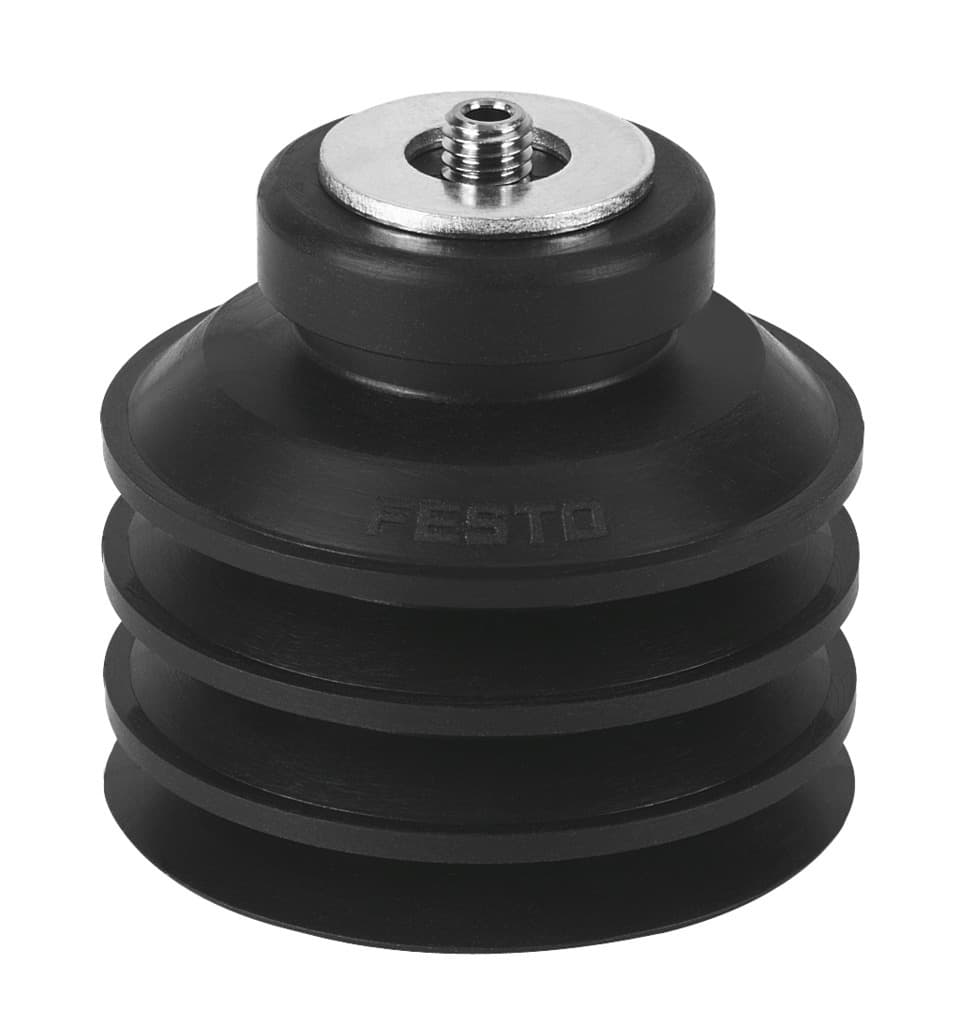

Product Model
ess-40-cn
Key Features
- 1Precision Handling: Designed for precise handling with a round/bellows shape and 3.5 convolutions.
- 2Durable Performance: Made from nitrile rubber (NBR) and wrought aluminum alloy with nickel chrome plating.
- 3Wide Operating Range: Operates at ambient temperatures from -10°C to +70°C and pressures up to 0.95 bar.
- 4Low-Corrosion Stress: Classified as CRC Class 1 for low-corrosion stress, ensuring long-lasting use.
- 5Easy Mounting: Features an M6 threaded pneumatic port for easy mounting on suction cup holders.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 12.8mm | Min. workpiece radius | 100mm |
| Nominal width | 3mm | Suction cup diameter | 40mm |
| Suction cup volume | 19.72cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 42.4N |
| Lateral force at nominal operating pressure | 47.5N | Product weight | 21.9g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Black | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Wrought aluminum alloy, nickel-plated Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 189404 |
Specifications may be subject to change without notice
