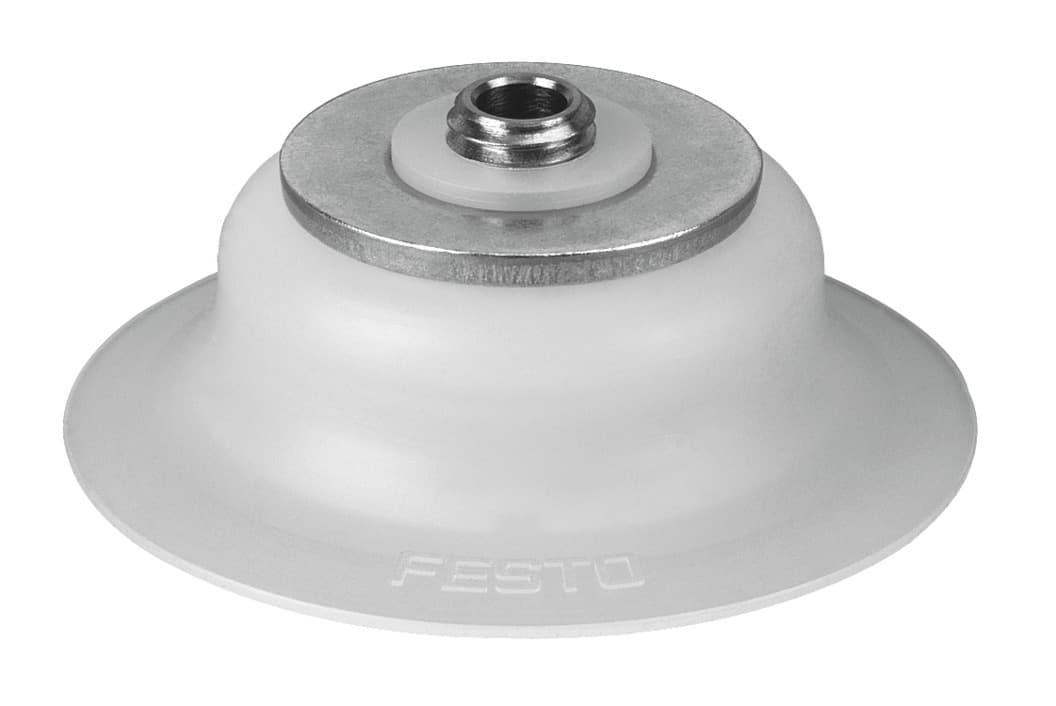

Product Model
ess-30-ss
Key Features
- 1Operates from -30°C to 180°C, making it suitable for diverse industrial environments.
- 2Ensures reliable performance in both cold and high-temperature conditions.
- 3Provides a secure grip with its unique round flat design, enhancing holding force.
- 4Easy installation via M6 vacuum connection, ensuring a secure fit.
- 5Classified as CRC 1, indicating low corrosion stress, ensuring durability and longevity.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 110mm | Nominal width | 3mm |
| Suction cup diameter | 30mm | Suction cup volume | 0.867cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 4 |
| Suction cup shape | Round, flat | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -30°C 180°C |
| Holding force at nominal operating pressure | 40.8N | Lateral force at nominal operating pressure | 23.5N |
| Product weight | 9g | Type of mounting | Via vacuum connection |
| Vacuum connection | M6 | Color | Transparent |
| Shore hardness | 50 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | VMQ (silicone) |
| Manufacturer ID | 189301 |
Specifications may be subject to change without notice
