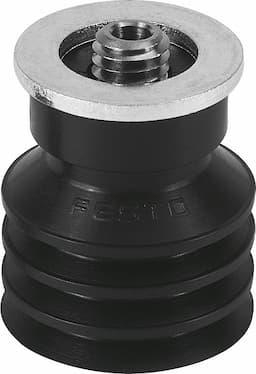

Product Model
ess-30-cn
Key Features
- 1High-Quality Material: Made from NBR caoutchouc for durability and resistance.
- 2Precision Design: 10.5mm height compensation and 3.5 convolutions for optimal performance.
- 3Food Industry Compatible: Meets VDMA24364-A1-L standards, suitable for use in the food industry.
- 4Robust Construction: Withstands ambient temperatures from -10°C to 70°C and operates at -95 kPa to 0 kPa.
- 5Easy Mounting: Mounts via vacuum port with M6 connection for straightforward installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 10.5mm | Min. workpiece radius | 80mm |
| Nominal width | 3mm | Suction cup diameter | 30mm |
| Suction cup volume | 9.47cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -10°C 70°C | Holding force at nominal operating pressure | 20.8N |
| Lateral force at nominal operating pressure | 11.5N | Product weight | 12.2g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Black | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | NBR | Manufacturer ID | 189402 |
Specifications may be subject to change without notice
