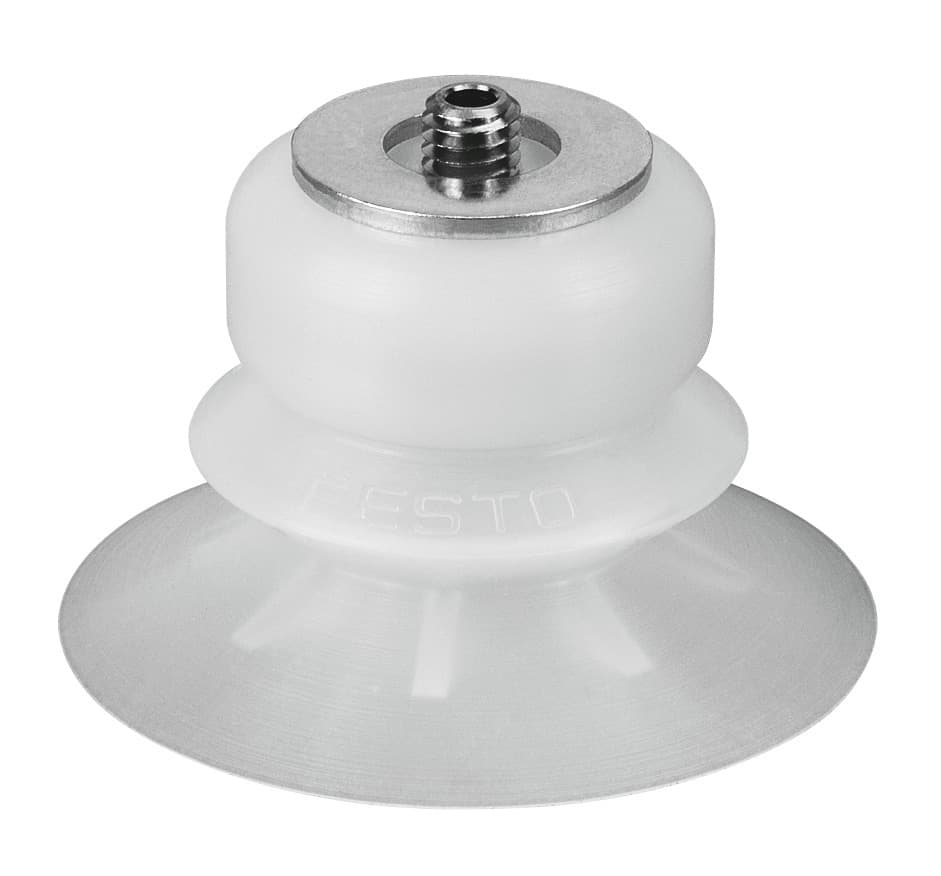

Product Model
ess-30-bs
Key Features
- 1Made from high-quality S Silicone material, ensuring long-lasting performance.
- 2Easily interchangeable and compatible with various vacuum systems.
- 3Suction cup diameter of 30mm and height compensator of 8mm for precise workpiece handling.
- 4Low corrosion stress classification (CRC 1) for use in demanding environments.
- 5Simple assembly and connection via male thread M6 for quick setup.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 8mm | Min. workpiece radius | 80mm |
| Nominal width | 3mm | Suction cup diameter | 30mm |
| Suction cup volume | 4.07cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 1.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 26.2N |
| Lateral force at nominal operating pressure | 16N | Product weight | 9.9g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189384 |
Specifications may be subject to change without notice
