Product Model
ess-20-en
Key Features

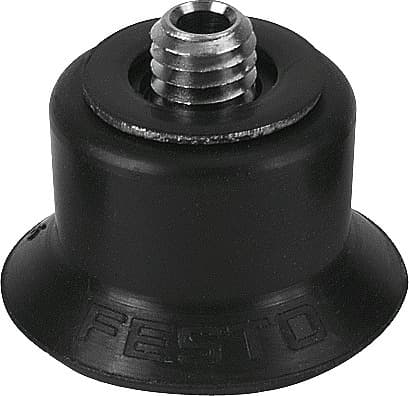

- 1The Festo ESS-20-EN suction cup is designed for effortless interchangeability, ensuring quick and efficient setup.
- 2With a minimum workpiece radius of 30 mm and a nominal size of 3 mm, it offers precise handling for various tasks.
- 3Made from high-quality materials like nickel-plated brass and steel, ensuring durability and long-lasting performance.
- 4Suitable for use with atmospheric air and compatible with food handling, making it versatile for multiple industrial applications.
- 5The compact design with a suction cup diameter of 20 mm and volume of 0.84 cm³, allows for precise placement in tight spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Min. workpiece radius | 30mm | Nominal width | 3mm |
| Suction cup diameter | 20mm | Suction cup volume | 0.84cm3 |
| Connection position | Top | Mounting position | Any |
| Symbol | 00991485 | Classification of suction cup holder | Size 4 |
| Suction cup shape | Round, extra-deep | Operating pressure | -13.775psi 0psi |
| Nominal operating pressure | -10.15psi | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -10°C 70°C |
| Holding force at nominal operating pressure | 17N | Lateral force at nominal operating pressure | 14N |
| Product weight | 6.4g | Type of mounting | Via vacuum connection |
| Vacuum connection | M6 | Color | Black |
| Shore hardness | 60 +/- 5 | Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated |
| Note on materials | RoHS-compliant | Suction cup material | NBR |
| Manufacturer ID | 189338 |
Specifications may be subject to change without notice
