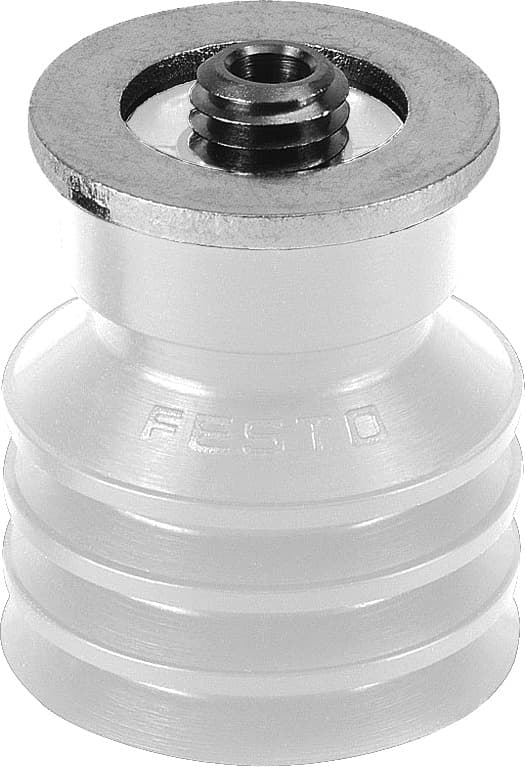

Product Model
ess-20-cs
Key Features
- 1Precision Handling: The ESS-20-CS offers a 20mm bellows design for precise handling and manipulation of objects.
- 2High Corrosion Resistance: Made from VMQ (silicone) material, it ensures high corrosion resistance and durability.
- 3Food Industry Compliance: Suitable for use in the food industry, meeting stringent cleanliness and safety standards.
- 4Versatile Mounting Options: Can be mounted via vacuum port with an M6 connection, providing flexibility in setup.
- 5Compact Design: Weighs only 6.9 grams, making it lightweight and easy to integrate into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup height compensation | 7mm | Min. workpiece radius | 50mm |
| Nominal width | 3mm | Suction cup diameter | 20mm |
| Suction cup volume | 2.75cm3 | Connection position | Top |
| Mounting position | Any | Symbol | 00991485 |
| Classification of suction cup holder | Size 4 | Suction cup shape | Round bellows, 3.5 convolutions |
| Operating pressure | -13.775psi 0psi | Nominal operating pressure | -10.15psi |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III | For use in the food industry | See supplementary material information |
| Ambient temperature | -30°C 180°C | Holding force at nominal operating pressure | 8.2N |
| Lateral force at nominal operating pressure | 7N | Product weight | 6.9g |
| Type of mounting | Via vacuum connection | Vacuum connection | M6 |
| Color | Transparent | Shore hardness | 50 +/- 5 |
| Material of screwed plug | Brass, nickel-plated Steel, galvanized and chrome-plated | Note on materials | RoHS-compliant |
| Suction cup material | VMQ (silicone) | Manufacturer ID | 189401 |
Specifications may be subject to change without notice
